Exploring Efficient FPGA Acceleration of High-Order 3D Iterative Stencil Loops on Large Data Grids - Arabian Journal for Science and Engineering

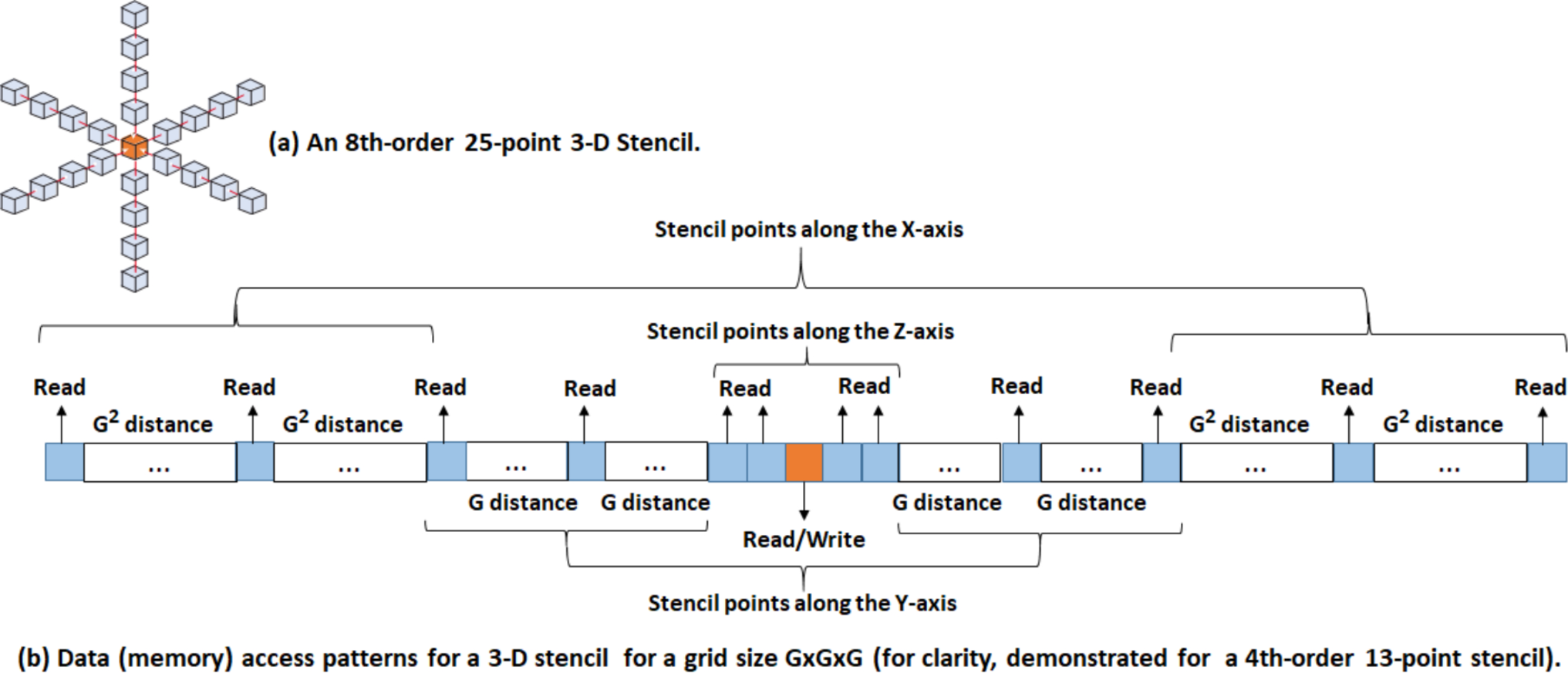

An efficient methodology for FPGA acceleration of high-order 3D iterative stencil loops over large 3D-grids was developed. Spatial (tiling) and temporal (combined iterations) blocking are used to circumvent the FPGAs’ limitations and maximize throughput. Implemented as a fully asynchronous SW-HW pipeline, it can compute high-order stencils on 3D grid without any limitations on the grid size or the number of iterations. An 8th-order, 25-point 3D stencil was used to demonstrate the methodology and possible optimizations of performance, resource utilization, and power efficiency. Results show that throughput is only limited by the FPGA off-chip memory bandwidth. Comparisons with published results for the same stencil showed that the developed methodology can achieve a throughput equivalent to ~ 43-Haswell cores (22 nm technology) or ~ 13 Milan-x cores (7 nm technology) running at 2.3 and 2.45 GHz, respectively. Compared to an A100 NVIDIA GPU implementation of the same stencil, it achieved ~ 41% better power efficiency (Watts per GB/s). The methodology was extended to support multiple FPGAs. With two FPGA boards, the total latency was reduced by ~ 27%.
