Advanced thermal metamaterial design for temperature control at the cloaked region

An advanced passive cooling mechanism via an array of surface fins is developed, which enables to maintain the cloaked region at a low temperature for an extended period of time.
Advanced thermal metamaterial design for temperature control at the cloaked region
Like

Share this post

Choose a social network to share with, or copy the shortened URL to share elsewhere

This is a representation of how your post may appear on social media. The actual post will vary between social networks

Thermal cloak has several interesting thermal functionalities: (i) to create a region with zero temperature gradient, and (ii) to minimize the heat disturbance surrounding to the items within the cloaked region by turning the heat flow around it. The challenge of the transformation thermodynamics is to make the transformed material properties being highly anisotropic and heterogeneous. A metamaterial provides the possibility to practically visualize the thermal cloak analogous to the cloaking in electromagnetism.

The recent work by Imran, Zhang and Gain introduced a new thermal metamaterial design, which integrated convective element, surface fins with the conventional cloaking as a passive cooling mechanism. They demonstrated that their design can keep the cloaked region at a low temperature for a long period of time yet with zero gradient of temperature change. As such, any items within the cloaked region can be protected from the disturbance of temperature rise from the surrounding area, as shown in Figure 1. With both numerical simulations and experimental verification, the authors confirmed that their method can maintain the temperature in the cloaked region at about 35oC when that in the sounding area is about 50oC.

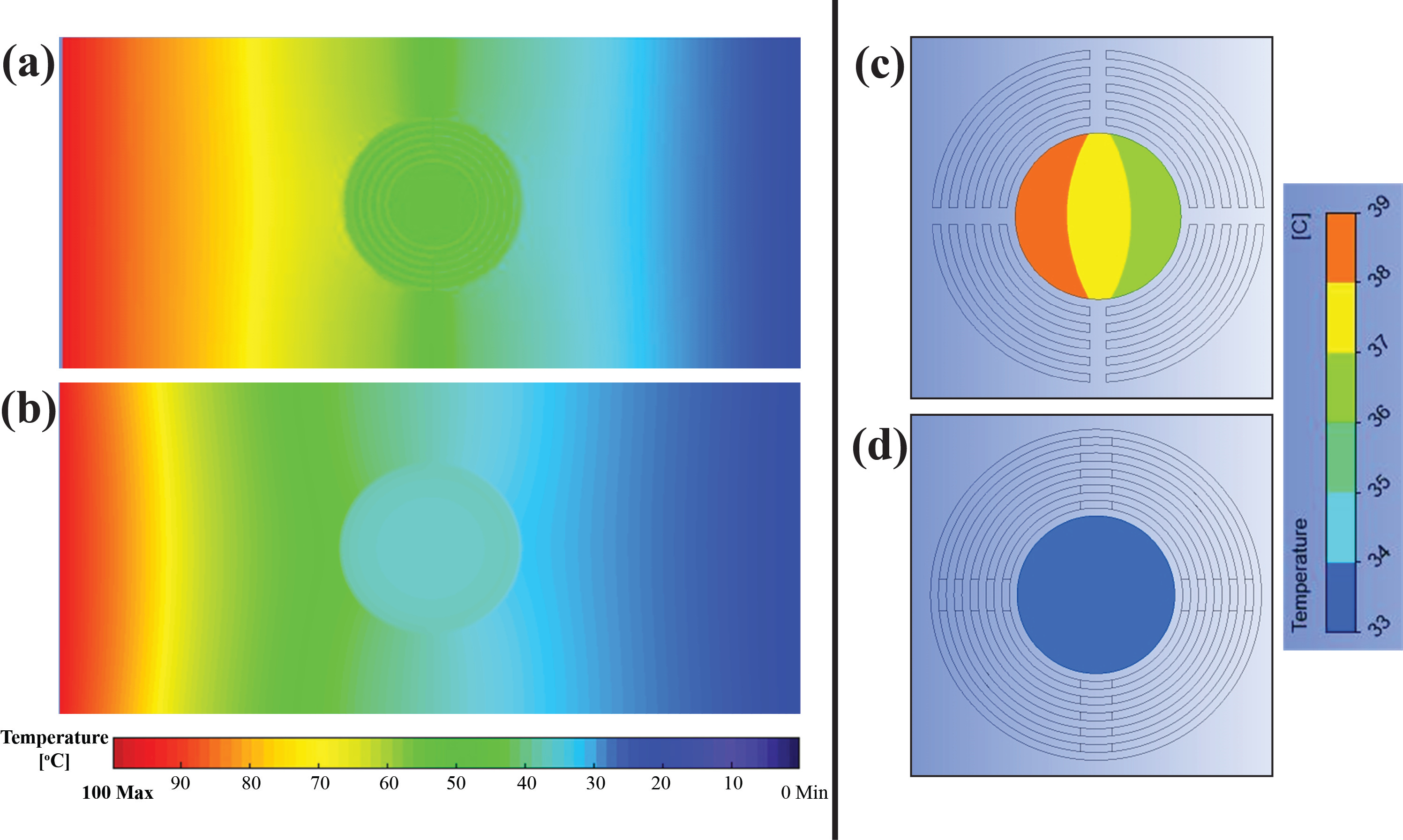

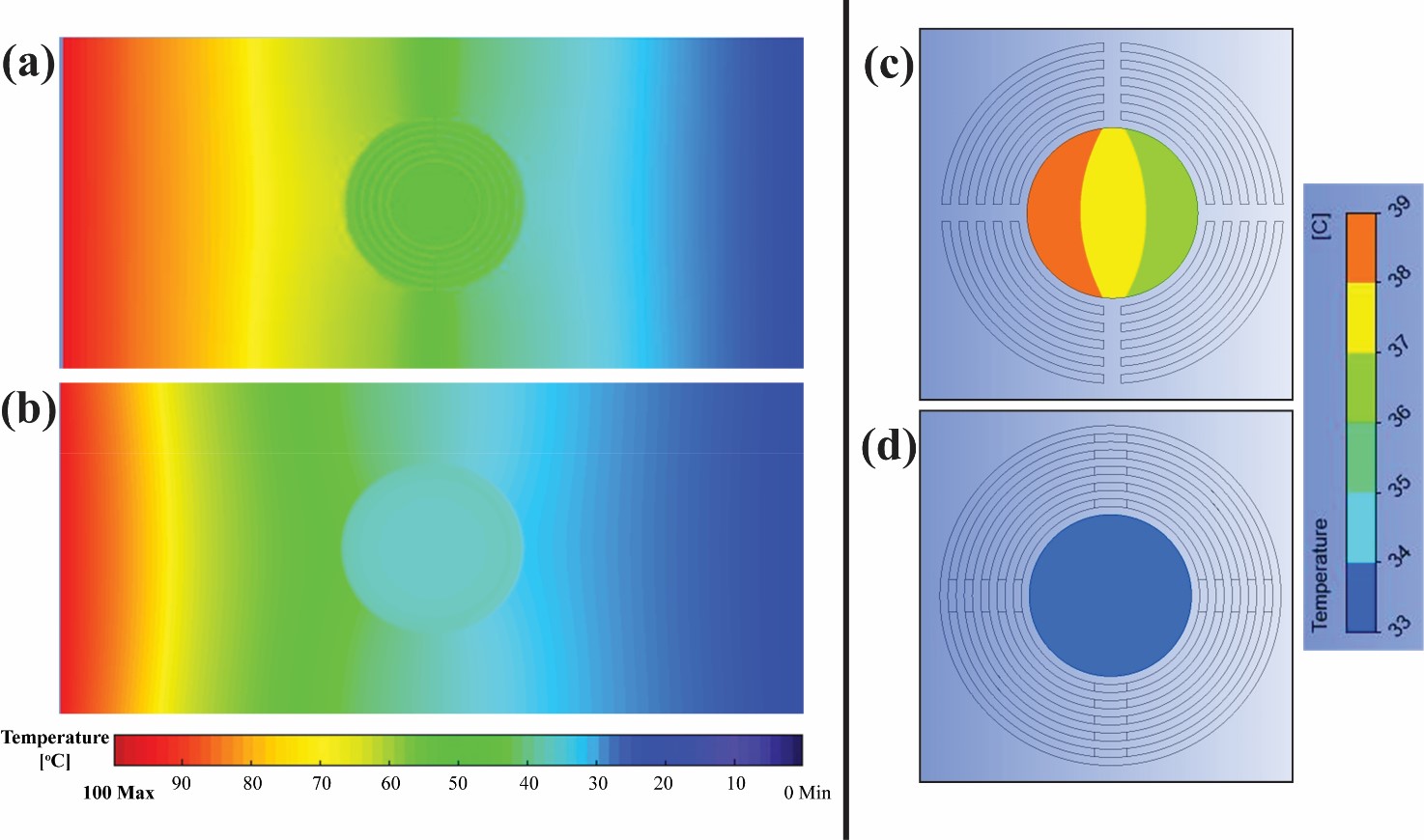

Figure 1: Comparison of (a) the conventional cloaking with (b) the convective element cloaking. The temperature gradient at the cloaked region for convective cloaking (c) without the base cloak and (d) that with the base cloak.

For more details, read the full paper here

Cite this article; Imran, M., Zhang, L. & Gain, A.K. Advanced thermal metamaterial design for temperature control at the cloaked region. Sci Rep 10, 11763 (2020). https://doi.org/10.1038/s41598-020-68481-6
