CARPID: Capture RNA-Protein interactions in living cells

We developed CARPID method to identify binding proteins of specific lncRNAs in the native cellular context, which jointly leverages enzymatically inactive CRISPR/dCasRx-based RNA targeting and proximity biotin-labeling.
Published in Protocols & Methods
CARPID: Capture RNA-Protein interactions in living cells

Share this post

Choose a social network to share with, or copy the shortened URL to share elsewhere

This is a representation of how your post may appear on social media. The actual post will vary between social networks

Although more than 70% of the genomic DNA can be transcribed to RNA at various stages during development, only ~2% of them codes for protein sequences. For decades, these tremendous number of non-coding RNA species (ncRNA) were recognized as “dark matter” and their function was ignored as transcriptional byproducts or noise. Recent interests have been raised upon these ncRNAs, especially the long non-coding RNAs (lncRNA, defined as ncRNA of more than 200 nucleotides in length) that become widely accepted as important cellular components participating in epigenetic regulation. For example, lncRNA XIST is known to be implicated in X chromosome inactivation in female cells.

For a long period, I have been really curious about the function of these many lncRNAs and the molecular mechanisms of how they are involved in regulating a broad spectrum of biological processes. Identification of the binding proteins of the lncRNA in the cellular context is deemed crucial in unraveling its biological function. Most existing methods rely on the small-molecule or UV-mediated crosslinking, which introduces bias and masks the interacting proteins under physiological circumstances.

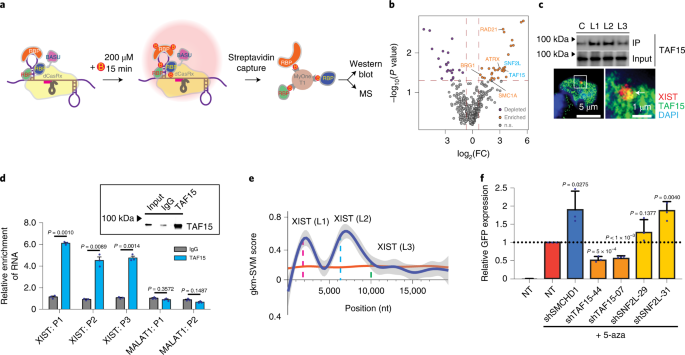

Proximity biotin-labeling technology has been repeatedly used to identify the protein-protein interactions in living cells. A recent publication of a method termed RaPID by the Stanford group led by Dr. Paul A. Khavari using an engineered biotin-transferase BASU to profile the binding proteins of a foreign viral RNA in HEK293T cells inspired me to leverage a similar strategy to identify RNA binding proteins of endogenous lncRNAs of interest. Immediately, I determined to employ the robust RNA-targeting CRISPR/CasRx system to specifically navigate BASU in close proximity to the RNA of interest. We termed the novel method CARPID, short for CRISPR-Assisted RNA-Protein Interaction Detection (See below Figure 1). Powered by the proteomic technique developed by my collaborator Dr Liang Zhang, we were able to find and validate a few previously uncharacterized binding proteins of XIST lncRNA in mammalian cells, e.g. TAF15 and SNF2L, and also demonstrated the broad application of CARPID to lncRNAs in different lengths, abundance and subcellular localizations.

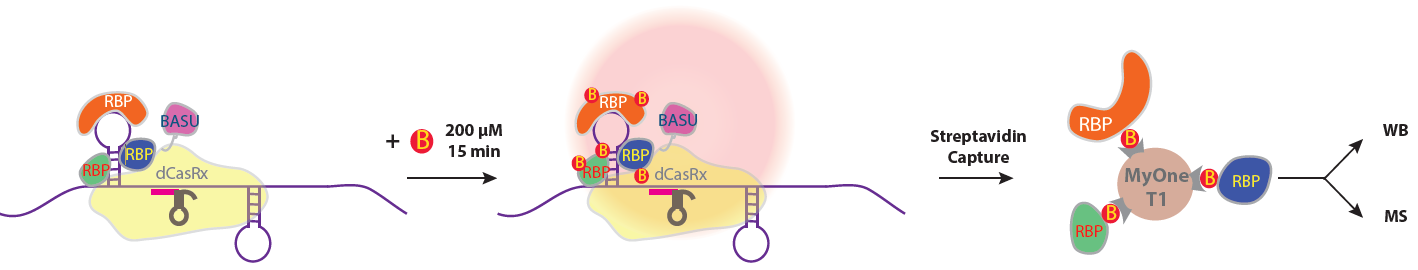

Figure 1 | Scheme of CARPID. The yellow shape depict the navigation system (CRISPR/Cas13d) that uses a 30-nt guide RNA to find and direct the CARPID components to the lncRNA of interest (a purple rope with stem loops). BASU (violate shape attached to CRISPR/Cas13d) is the proximity labeling part of the CARPID that can add biotin (B) moiety to adjacent binding proteins (indicated by “RBP”). Streptavidin coated beads (MyOne T1) is used to recognize and purify the binding proteins (“RBP”) for identification (WB: western blot; MS: mass spectrometry).

During the review process of our manuscript, we also witnessed emergence of a few similar methods from different laboratories. Among them for example, a study led by the Stanford scientist Dr Alice Y. Ting using CasRx-based APEX2 targeting to map RNA-protein interactions was posted in the non-peer reviewed platform bioRxiv, accompanied by another similar publication in Nucleic Acids Research by Zhang et al. from ShanghaiTech University in China using CRISPR/Cas13a to direct a different system PUP-IT for proximity biotin-labeling. All these works strongly encouraged us by showing the broad interest of such strategy. Facing the pandemic of COVID-19, we have been motivated to apply CARPID to the viral RNA genome aiming to identify cellular proteins that bind to the viral RNA and facilitate the life cycle of SARS-CoV-2 in infected cells, which hopefully could enable identification of targets or a path to effectively contain the viral spreading.

CARPID manuscript was first submitted to Nature Methods in September 2019 with two rounds of revision thanks to all very insightful referees, and finally it got accepted on 18th May 2020. During revision, we consecutively faced the social unrest and outbreak of COVID-19 pandemic, which inevitably caused substantial interruption to the lab work. We sincerely wish that the pandemic will be soon controlled and also a peaceful future of Hong Kong and the world.

You can find the online publication from now on via:

Finding RNA binding proteins in living cells largely unravels the function and fate of the RNA molecules. This artwork depicts a new method CARPID that can tag and identify proteins in close proximity to the RNA of interest in the native cellular context. This is alluded to by the CARPs once adjacent to the fishing rope tied with a bait, turning red and to be easily identified and captured. In the drawing the CARPs represent the dynamic cellular proteins, and the bait reflects the CARPID components targeting the long strand of an RNA molecule of interest shown as the fishing rope. The biotin-tagging event is illustrated by the CAPRs becoming red in close proximity to the fishing rope with the bait.
