A Discussion of Implausible Total Solar-Irradiance Variations Since 1700

In my recent publication, I aimed to contribute to the ongoing discussion about the potential long-term variations in the solar radiative output. To do so, I undertook the task of updating the total solar irradiance reconstruction model that was initially developed by Hoyt & Schatten (1993; HS93).
Published in Astronomy and Earth & Environment
A Discussion of Implausible Total Solar-Irradiance Variations Since 1700
Like

Read the paper

SpringerLink
SpringerLink SpringerLink

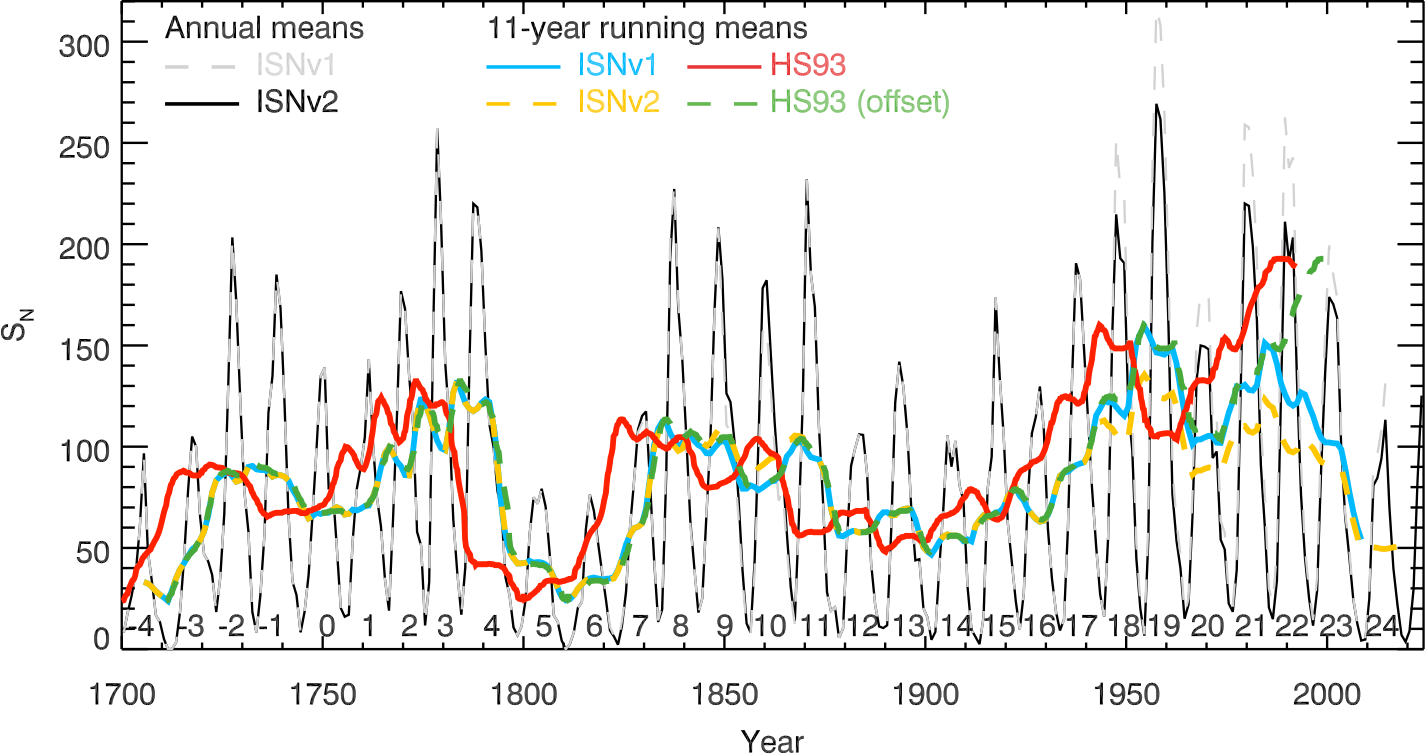

A Discussion of Implausible Total Solar-Irradiance Variations Since 1700 - Solar Physics

The Sun plays a role in influencing Earth’s climate, making it important to have accurate information about variations in the Sun’s radiative output. Models are used to recover total solar-irradiance (TSI) variations in the past when direct space-based measurements are not available. One of the most cryptic such TSI reconstructions is the one by (J. Geophys. Res. 98, 18, 1993, HS93). The rather vague description of the model methodology, the arbitrary selection of solar indices it employs, and the short overlap between the HS93 series and directly measured TSI values has hindered any evaluation of the performance of this model to this day. Here, we aim at rectifying this by updating the HS93 model with new input data. In this way we are also contributing in the discussion on the possible long-term changes in solar irradiance.We find that the analysis by HS93 included a number of erroneous processing steps that led to an artificial increasing trend towards the end of the reconstructed TSI series as well as shifting the peak of the TSI in the mid-twentieth century back in time by about 11 years. Furthermore, by using direct measurements of the TSI we determined that the free parameter of the model, the magnitude of variations (here defined as percentage variations of the difference between the maximum to minimum values), is optimal when it is minimised (being ≤0.05%). This is in stark contrast to the high magnitude of variations, of 0.25%, that was imposed by HS93. However, our result is consistent with more recent estimates, such as those from the Spectral And Total Irradiance REconstruction (SATIRE) model and Naval Research Laboratory TSI (NRLTSI), which were used by the Intergovernmental Panel on Climate Change (IPCC). Overall, we find that the previously reported agreement of the HS93 TSI series to temperature on Earth was purely due to improper analysis and artefacts of the processing.

The motivation for modeling the past variations in solar irradiance arises due to the Sun playing a crucial role in influencing Earth's climate, while direct measurements of TSI from space cover only a limited period (since 1978). Consequently, various models have been devised over the years to reconstruct past TSI variations. These models vary in their approach, where some are more physics-based and others more empirical. Regardless of their methodologies, all these models rely on historical data of solar activity, typically the sunspot number series or data on cosmogenic radioisotopes. Therefore, regular updates of the models are essential to integrate any updates or corrections made to the input data.

Direct measurements of TSI also serve as a benchmark for evaluating all models. The longer the records of these direct measurements, the better the models can get refined. Recent research, benefiting from improvements in both data quality and modeling techniques, generally indicates that TSI variations over the past four centuries have been relatively modest[1]. However, the uncertainty remains regarding their precise values, and some scientific literature still suggests a significant long-term trend in TSI variations.

It is noteworthy that most such claims regarding the high magnitude of solar irradiance variations rely on old and outdated TSI series, but mostly on a single TSI dataset, the one by HS93. This model has also been used to argue that the Earth’s temperature increase over the last decades was almost entirely due to the Sun.

However, the accuracy of this model was not evaluated, and its creators did not provide any update since the original publication in 1993. Considering that studies attempting to replicate published results are relatively uncommon, this left the claims made based on this model without a thorough understanding of its quality. Furthermore, the cryptic description of the model contributed to hindering its replication. These sparked my curiosity for this model and, initially at my spare time, I undertook the challenge of replicating this model and deciphering its methodology.

The HS93 TSI model takes a purely empirical approach to reconstruct TSI utilizing five sunspot activity indices:

  1. Sunspot number series (annual values & 11-year averages)
  2. Equatorial rotation rate
  3. Fraction of "penumbral spots"
  4. Lengths of solar cycles
  5. Rate of decay of solar cycles

I started by trying to identify the source data and replicate their methodologies in producing each of these 5 indices. This required consulting additional sources from the literature which might contain hints about this model as well as digitizing the indices from the HS93 paper figures to reveal their characteristics. The sunspot number series was the most straightforward to derive, and that was already sufficient to reveal significant flaws in HS93's analysis. Specifically, they incorrectly shifted the 11-year smoothed sunspot number series 11 years into the past, resulting in an artificial spike in solar activity over the recent decades due to estimated future values.

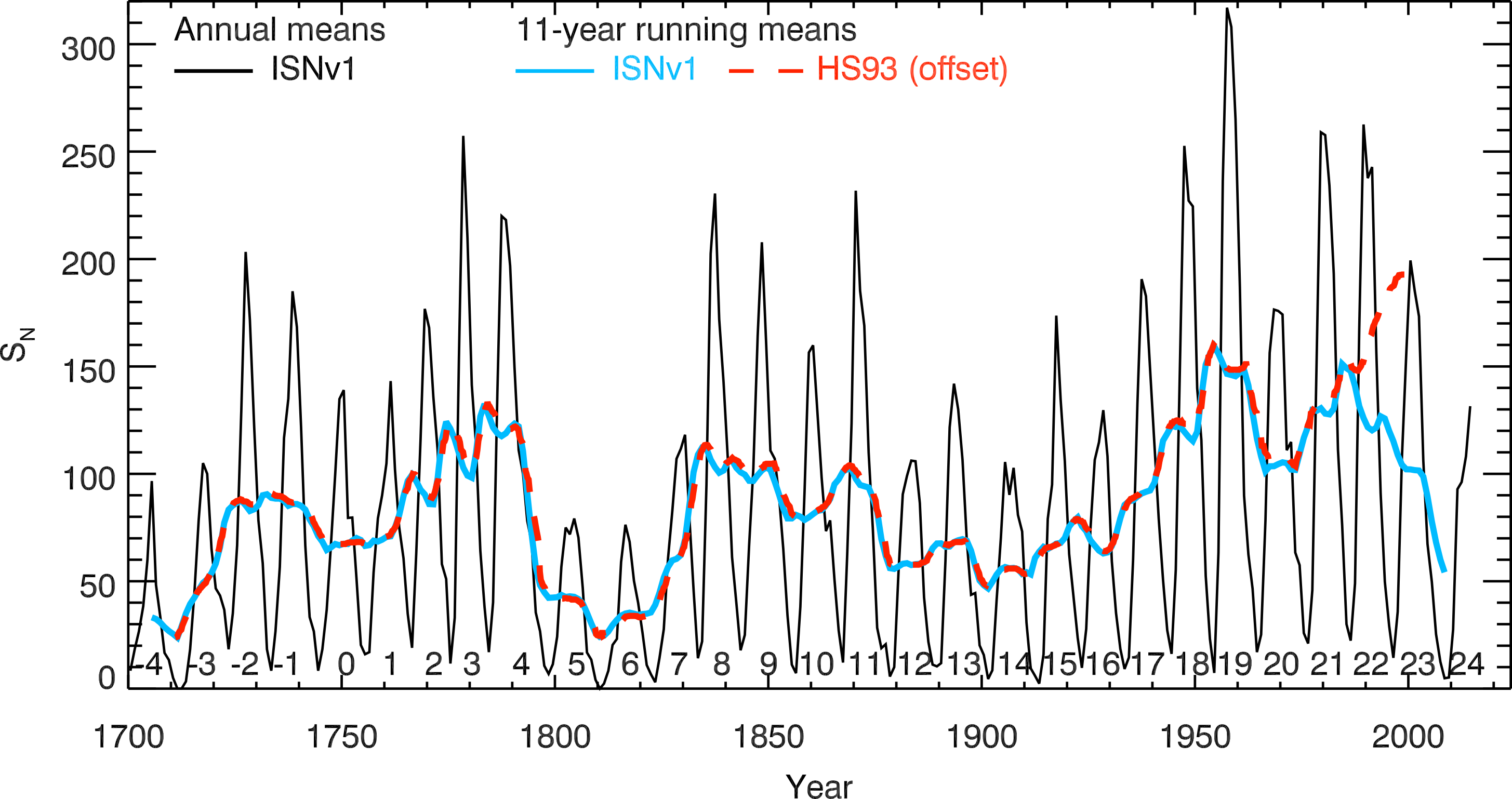

Figure 1:  Comparison between the sunspot-number series (ISNv1) and the index used by HS93 (red). Since the sunspot-number series used by HS93 was offset by 11 years to the past, we show it by restoring it to the original time period.  This highlights the artefact introduced by HS93's processing, which introduced an artificial increase over the last decades.

 Inconsistencies with the production of the other indices were realized too. In particular the incorrect combination of data from different sources without properly accounting for archive differences and thus leading to artefacts and spurious trends in the indices.

Having replicated HS93’s methodologies to produce the five indices, it was possible to gain insights in the process HS93 used to reconstruct TSI. HS93 linearly scaled the previously described five indices and then averaged them to reconstruct TSI. Effectively, the large amplitude of TSI variations of this model was not an intrinsic characteristic, but a free parameter of the model. Another limitation of the model is its inability to offer real-time TSI reconstructions; it can only provide annual TSI values and is restricted to a reconstruction extending only up to 12 years before the present day.

Using the model with updated versions of the five indices and through a comparison with direct TSI measurements, I found that the large variations in TSI suggested by the original HS93 TSI series did not align with direct measurements of TSI over recent decades. In particular it appears that HS93's imposed variations were exaggerated by approximately a factor of five. Overall, the variations suggested by the HS93 model align with other high-quality models from the literature, such as e.g. the Spectral And Total Irradiance (SATIRE) model[2]. It is important to note that while the original TSI series by HS93 was recently used to question the solar forcing used by the Intergovernmental panel on climate change (IPCC)[3], updating the model with recent data brings it in line with the dataset used by the IPCC.

Lastly, when comparing the TSI reconstruction with Earth's temperature data, it becomes evident that the model cannot support the argument that TSI correlates with temperature fluctuations on Earth in recent decades.



Figure 2: Comparison between annual Earth-temperature measurements and reconstructed TSI with the HS93 model. The TSI series are shown after linearly scaling them to the HadCRUT5 global temperature series.

 If these issues had been recognized earlier, it is improbable that the Hoyt and Schatten (1993) TSI series would have garnered the attention it did.





References:

[1] Chatzistergos, T., Krivova, N.A., Yeo, K.L., 2023. Long-term changes in solar activity and irradiance. Journal of Atmospheric and Solar-Terrestrial Physics 252, 106150. https://doi.org/10.1016/j.jastp.2023.106150

 [2] Krivova, N.A., Solanki, S.K., Fligge, M., Unruh, Y.C., 2003. Reconstruction of solar irradiance variations in cycle 23:  Is solar surface magnetism the cause? Astronomy and Astrophysics 399, L1–L4. https://doi.org/10.1051/0004-6361:20030029

[3] https://www.ipcc.ch/report/ar6/wg1/
