Clues to Cacao

Some serious sleuthing or serendipity? Regardless, the results were sweet!
Clues to Cacao

Our paper 'The use and domestication of Theobroma cacao during the mid-Holocene in the upper Amazon' can be found here.

Francisco Valdez does not believe in coincidences.

In the fall of 2008 I was investigating ancient agriculture in Ecuador for my doctoral research and found out about Valdez’s work at the Santa-Ana La Florida (SALF) site and the early dates associated with it. I met him In Quito and he graciously showed me some of the artefacts recovered from the site, including the earliest ceramic stirrup spout bottles yet found anywhere in the Americas. I was stunned by their beauty and sophistication. We made plans to meet up again, so I could sample residues from the artefacts and in 2009 I was able to visit SALF, participate in some excavation, and collect comparative plants from around the site.

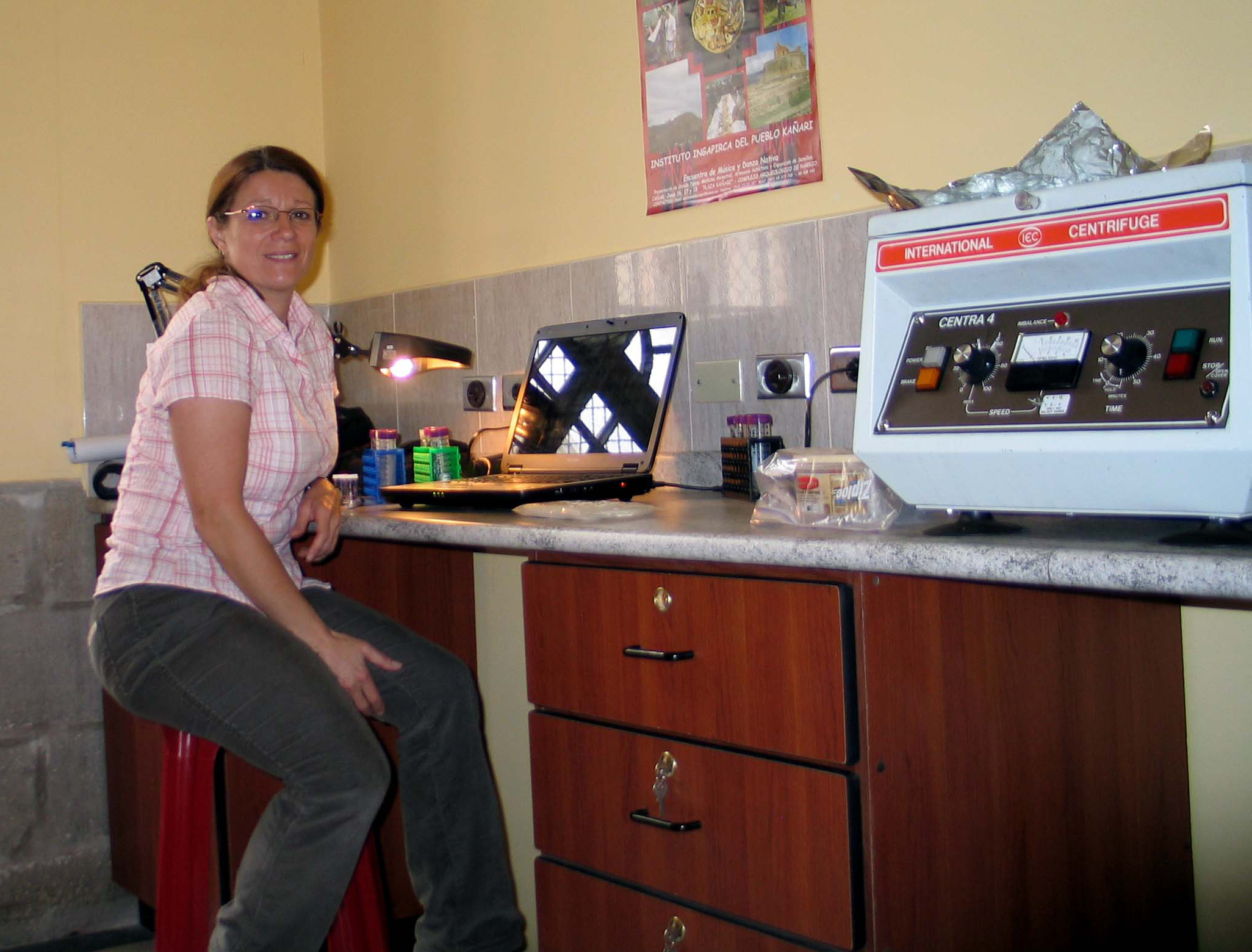

Sonia Zarrillo working on SALF samples in USFQ-Riobamba laboratory, Ecuador. Photo credit Sonia Zarrillo

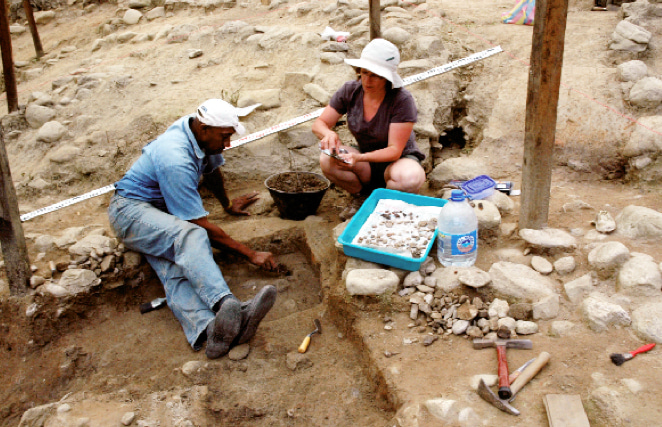

Julio Hurtado (left) and Sonia Zarrillo (right) excavating at SALF - Zarrillo placing a ceramic sherd in tin foil to preserve its integrity and guard against modern plant contamination. Photo credit Francisco Valdez

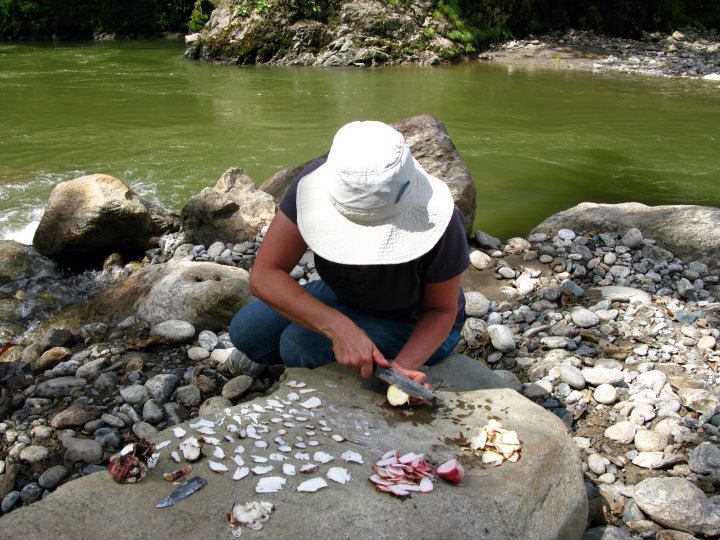

Sonia Zarrillo preparing comparative plants collected at SALF for starch grain analysis, on the banks of the Rio Valladolid. Photo credit Sonia Zarrillo

In 2010 I presented the preliminary results at a conference and Michael Blake, whom I knew previously, was there. We sat down to chat about my talk and he commented that the stirrup spout bottles recovered from SALF reminded him of ancient spouted vessels from Mexico and Central America – vessels that were known to have been used in the preparation of cacao drinks. Had I ever thought of looking for starch grains of Theobroma cacao in addition to the other microscopic plant residues I was looking for?  It’s hard to describe how the brain synapses were firing in all directions at this point – we both knew that for the past 10 years or so, molecular geneticists, including Claire Lanaud and others, were pointing to the upper Amazon, where SALF is located, as the homeland of domesticated cacao. Yet because beverages made from cacao are so iconic of pre-Columbian Mesoamerican cultures—and in fact the words “cacao” and “chocolate” are derived from Maya words for this food—many researchers have long supported the idea that cacao was first domesticated in Mesoamerica. So, we have two competing theories: 1) that a wild Theobroma species was transported to and then domesticated in Central America and/or Mexico; or that 2) cacao was first domesticated in the upper Amazon region and was dispersed from there. In fact, the latter hypothesis is not an entirely new idea, as plant geographers had previously proposed this in the early half of the 20th century due to the high diversity of Theobroma in this region and genetic studies have more recently supported this as well: that the geographic centre of a plant's genetic diversity is usually where its origin lies. Might it be possible that Francisco Valdez and his team’s archaeological discoveries at SALF might help to shed new light on cacao’s origin?

In answer to Michael’s original question, had I looked at starch grains of Theobroma cacao?, the answer was “yes.” I already knew that they were present in small quantities in cacao seeds and were very tiny (even smaller than the microscopic starch grains of many other common plant species that we look for in archaeological sites), but I also knew from my preliminary results that I had many small unidentified starch grains present in SALF’s artefacts’ residues. I needed to take a closer look! Every pun intended.

General view of microscope slide with Theobroma spp. starch grain in centre, amongst other particles, in the ceramic residues. Image at 400X magnification. Photo credit Sonia Zarrillo

Once I had identified possible diagnostic forms of Theobroma starch grains in the residues, my next step was to greatly expand my comparative collection to determine if these forms were unique to Theobroma or found in other related species.

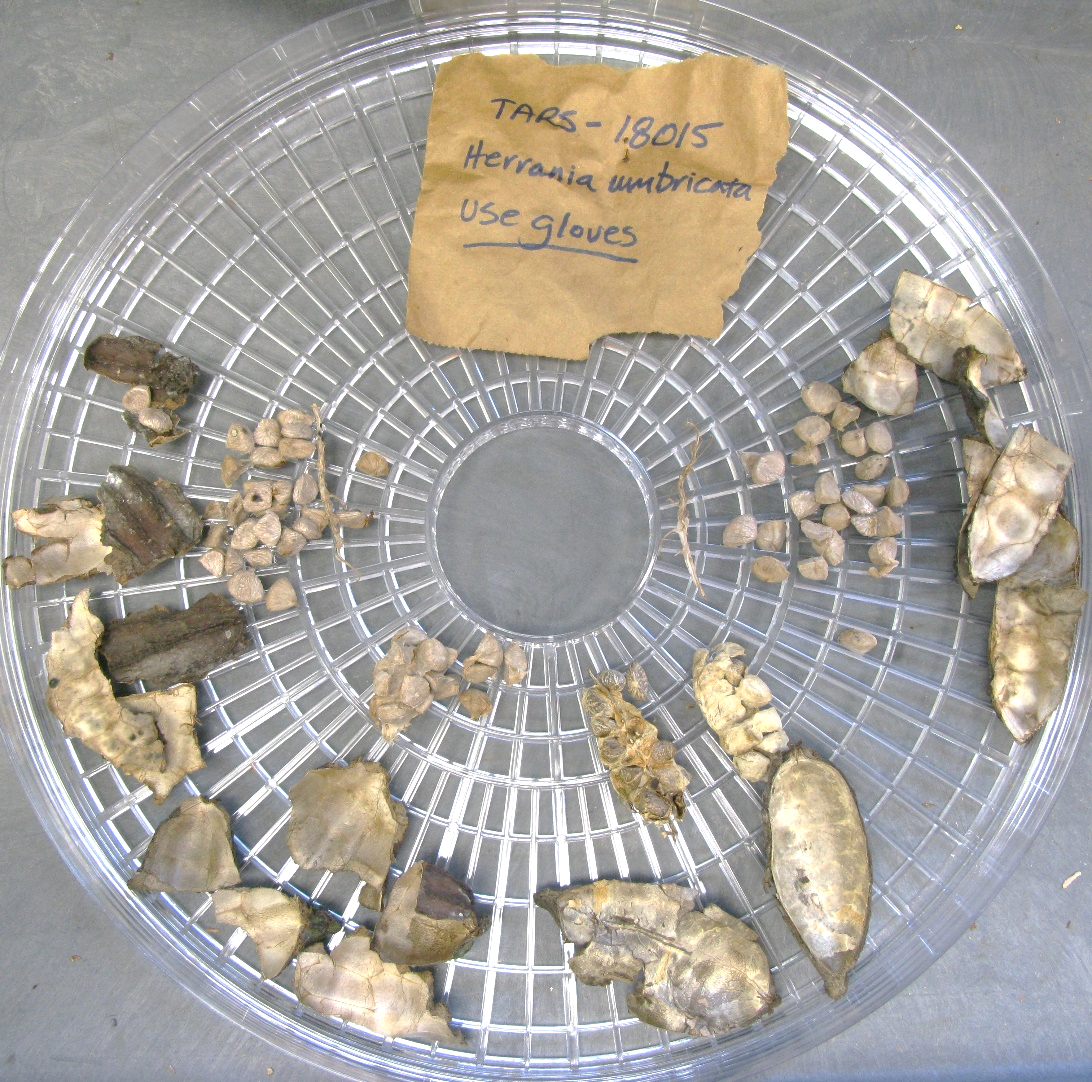

Herrania umbricata (monkey cacao) comparative sample, dried and ready to prepare seeds (and other parts) for starch grain comparison. Photo credit Sonia Zarrillo

By 2011-2013, my analyses confirmed that starch grains diagnostic for Theobroma could be distinguished from those of other plants and were present in artefact residues from SALF. Blake had already contacted his colleague, Terry Powis, who had long-since been involved in cacao research in Mesoamerica, and Terry was already working with Nilesh Gaikwad on developing stringent sampling methods to refine mass-spectrometry methods for identifying the key active compounds that make chocolate so delicious: caffeine, theobromine, and theophylline. They and their colleagues had been working to refine the methods of identifying minute traces of these compounds in ancient artefact residues in Mesoamerica. In fact, just a few years earlier, they had helped to identify cacao residues on pottery from the 3800 year-old settlement of Paso de la Amada, located on the Pacific coast of Chiapas, Mexico.

Our next step was to secure funding to test the SALF collection for the chemical residues that are unique to cacao and send Terry and his colleague Patrick Severts to Quito to sample the SALF artefacts.

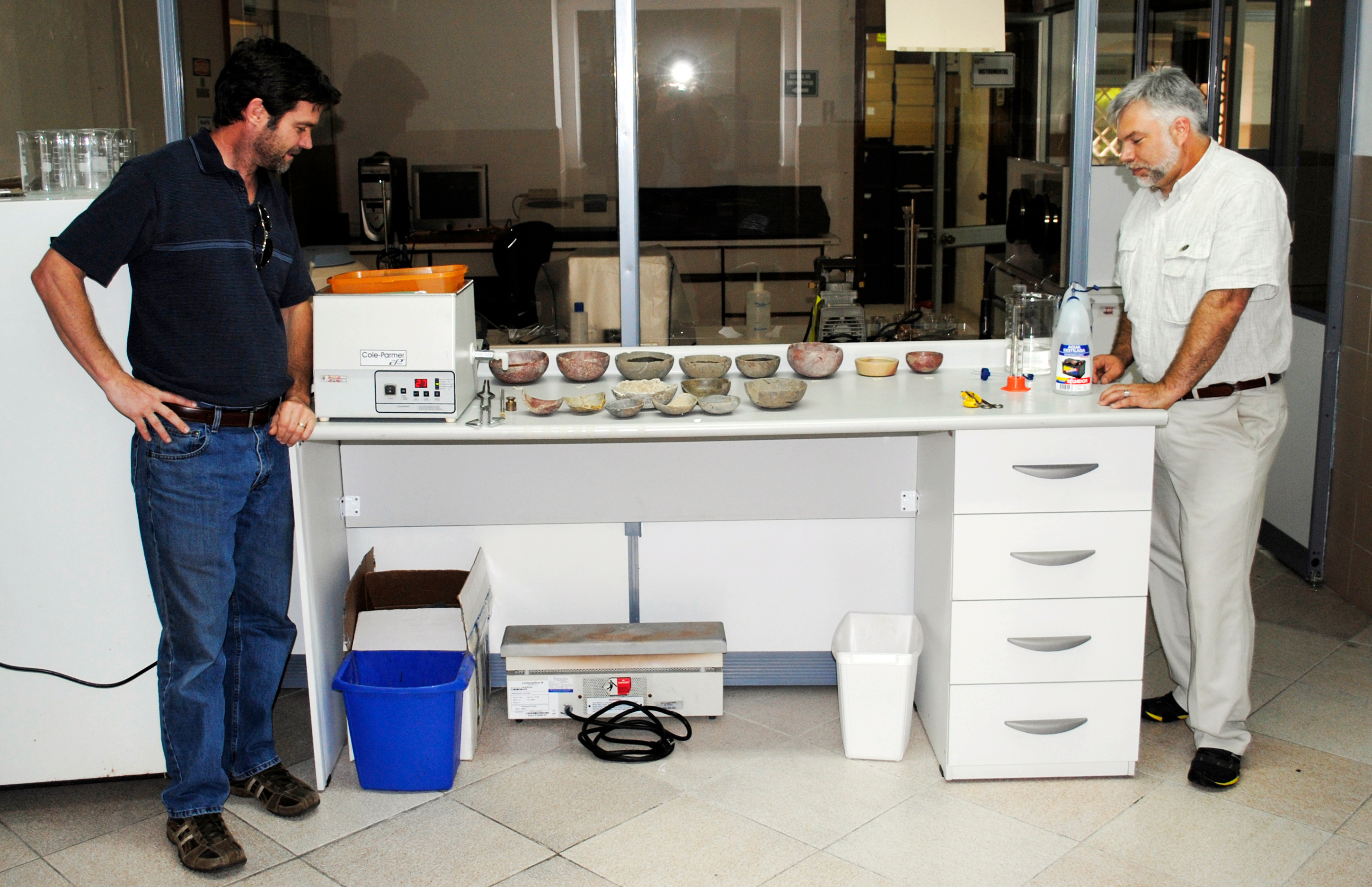

Terry Powis (left) and Patrick Severts (right) preparing to sample artefacts from SALF to test for theobromine residues (2012). Photo Credit Terry Powis

Nilesh Gaikwad, working with UPLC-MS/MS. Photo credit Nilesh Gaikwad

Meanwhile, Francisco Valdez was working with Claire Lanaud. Claire's research team from CIRAD, and Rey Gaston Loor Solorzano's team from INIAP (Ecuador), were working on the domestication of the Nacional cacao variety from Ecuador, on the origin of the production of "fine" and "flavor" cacao in Ecuador. Despite its cultivation on the Pacific coast of Ecuador, they identified its origin in the southern region of the Ecuadorian Amazon (Zamora Chinchipe province where the SALF site is located), and then returned to this region to collect new native genetic resources suitable to improve new aromatic cacao varieties. During their expedition in 2010, they heard about an archaeologist who was working in this region 50 km from Nuevo Paraiso where they were collecting native cacao trees. Shortly after, back in Montpellier, Claire found information on the SALF archaeological site, and immediately contacted Francisco Valdez to propose analyses to recover ancient DNA in the residues of the artefacts from SALF, in the hopes of detecting ancient cacao DNA.

Claire and Gaston's team collecting native Theobroma species in Zamora Chinchipe province. Photo credit Claire Lanaud

Later, Claire and Gaston's teams collected native cacao trees close to the SALF site and Francisco also participated - with this furthering to reinforce the collaboration between archaeologists and biologists.

Claire subsequently sampled SALF artefacts for ancient DNA, and I shared additional residue samples I collected with both Nilesh and Claire.

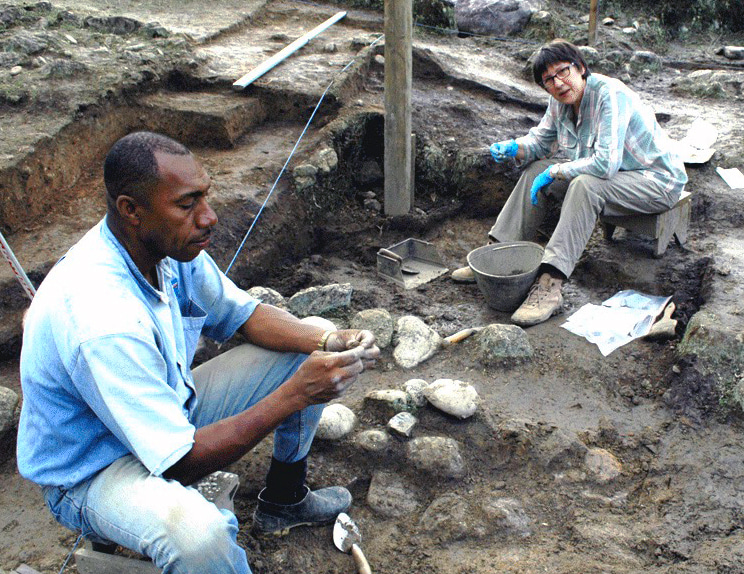

Julio Hurtado (left) and Claire Lanaud (right) working at the ancient SALF site in 2013. Photo credit Claire Lanaud
Claire Lanaud working with samples in the search for ancient DNA of cacao. Photo credit Claire Lanaud

Working in his lab at UC Davis, Nilesh Gaikwad had recorded positive results for cacao’s diagnostic compound theobromine in the residues recovered from many of the artefacts from SALF. Meanwhile in Montpellier, France, Claire and her DNA team were adapting and refining methods to recover ancient DNA from a variety of residue types and were able to identify and distinguish the small strands of DNA from other plant species – showing that wild species of Theobroma, domesticated T. cacao, and a closely-related species (Herrania) were all used at SALF. Our results showed that the people of SALF were using domesticated T. cacao by at least 5,300 years ago – almost 1500 years earlier than in Mesoamerica – and we confirmed the upper Amazon as the oldest region yet identified as the birthplace of cacao.

Francisco Valdez and his team, from the outset of investigations, involved the local community in the archaeological excavations and in the restoration of some of the architectural features at the site – especially because of their expertise in traditional stone and daub construction techniques. Importantly, a local women’s association also worked on building and maintaining a community nursery for cacao sprouts, and the saplings were later planted in their own agricultural fields.

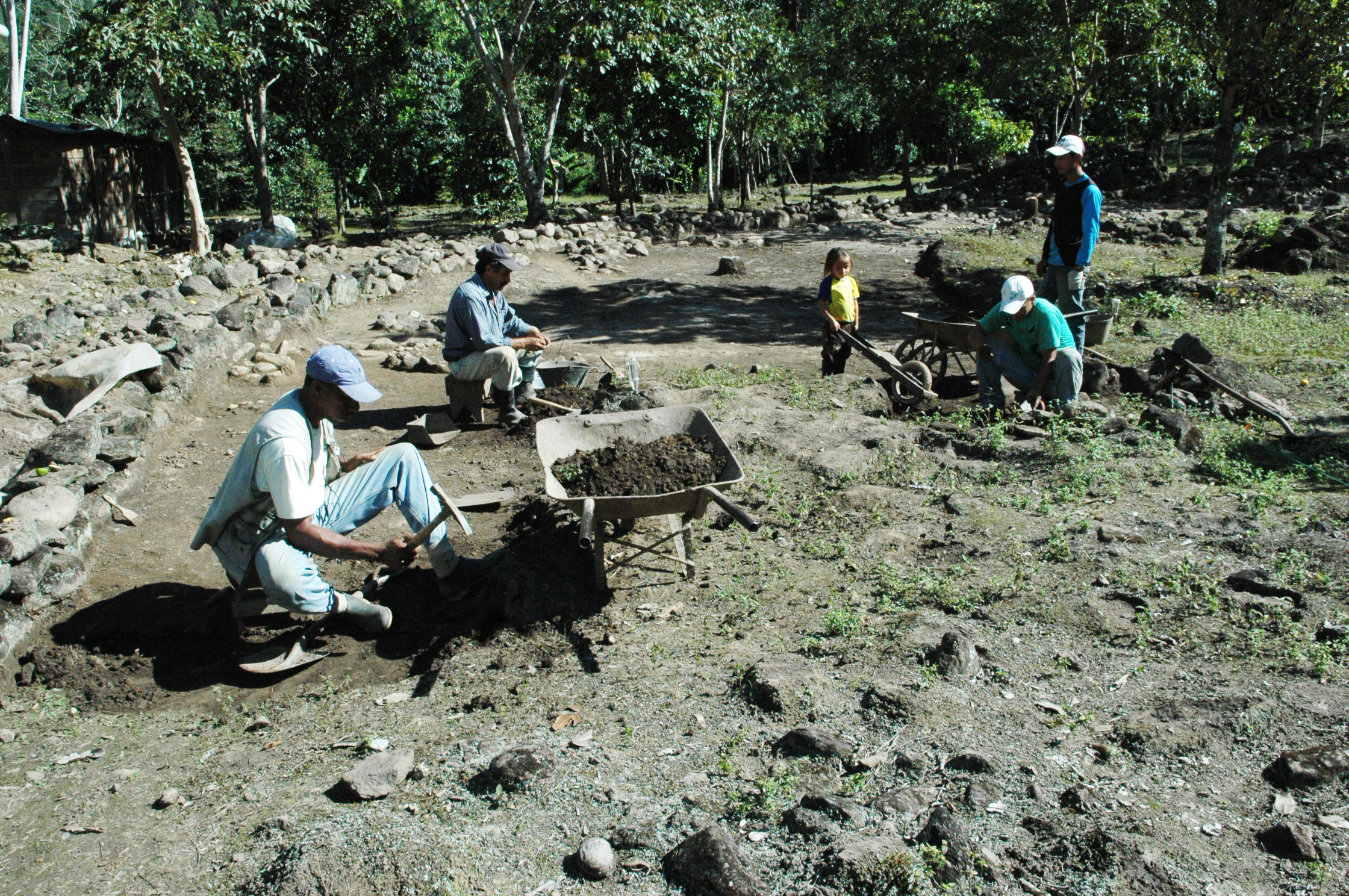

Community member participating in excavations at SALF. Photo credit Francisco Valdez

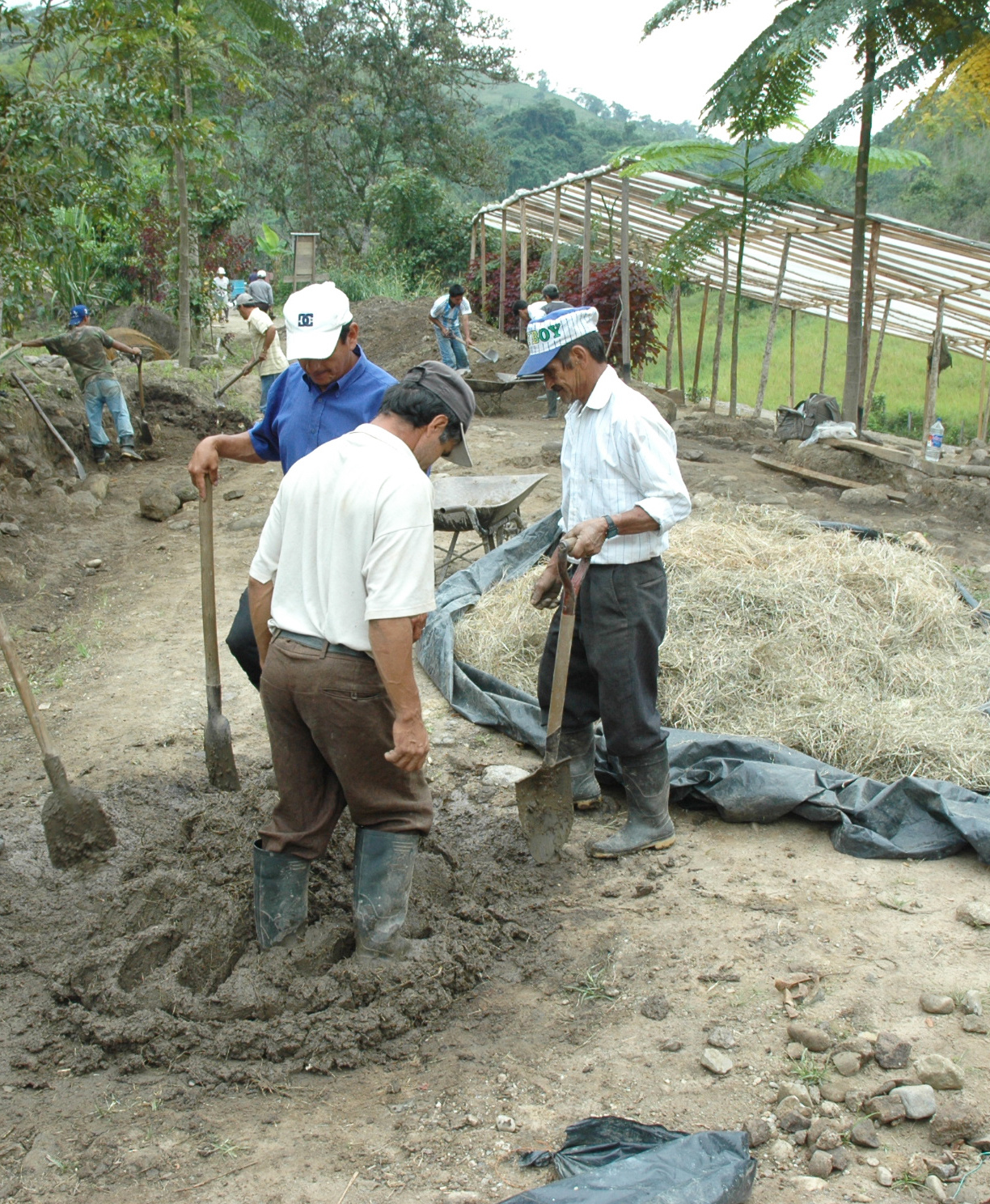

Local community members preparing daub used to reconstruct stone walls at SALF, based on archaeological evidence of the walls’ locations and original construction techniques. Photo Credit Francisco Valdez
Local women’s association preparing the soil at a nursery to plant cacao – the saplings were later transplanted to the women’s own gardens and fields. Photo credit Francisco Valdez

It is only through the endurance of these local traditional practices and knowledges that we are much better informed, while the local community recovers the tangible and intangible remnants of their history, reaffirms their descendant ancestral connections, and are now the rightful caretakers of SALF and its Interpretive Centre.

Julio Hurtado and Francisco Valdez presenting to local community members at SALF. Photo credit Francisco Valdez

Our search for cacao at SALF took 10 years – from start to publication – and required the time, expertise, coordination, and patience, of many people (most of whom have not met face-to-face) spread over four countries and three continents. While that may seem like a long time, this story lay hidden – in the mists of the upper Amazon cloud forest – for more than 5000 years to be told by a group of researchers and local community members that, whether through serendipity or by a calling of the “food of the gods,” came together and followed the clues -- but Francisco Valdez firmly believes that “there are no coincidences in life.”

Francisco Valdez working at Santa Ana-La Florida (SALF). Photo credit Claire Lanaud
