Researchers at Westlake University have disclosed a two-dimensional (2D) mechanically interlocked polymer (MIP) that mimics medieval chainmail at the molecular scale. This micrometer-scale 2D material exhibits exceptional flexibility and stiffness, potentially revolutionizing next-generation lightweight protective gear and smart armor systems.

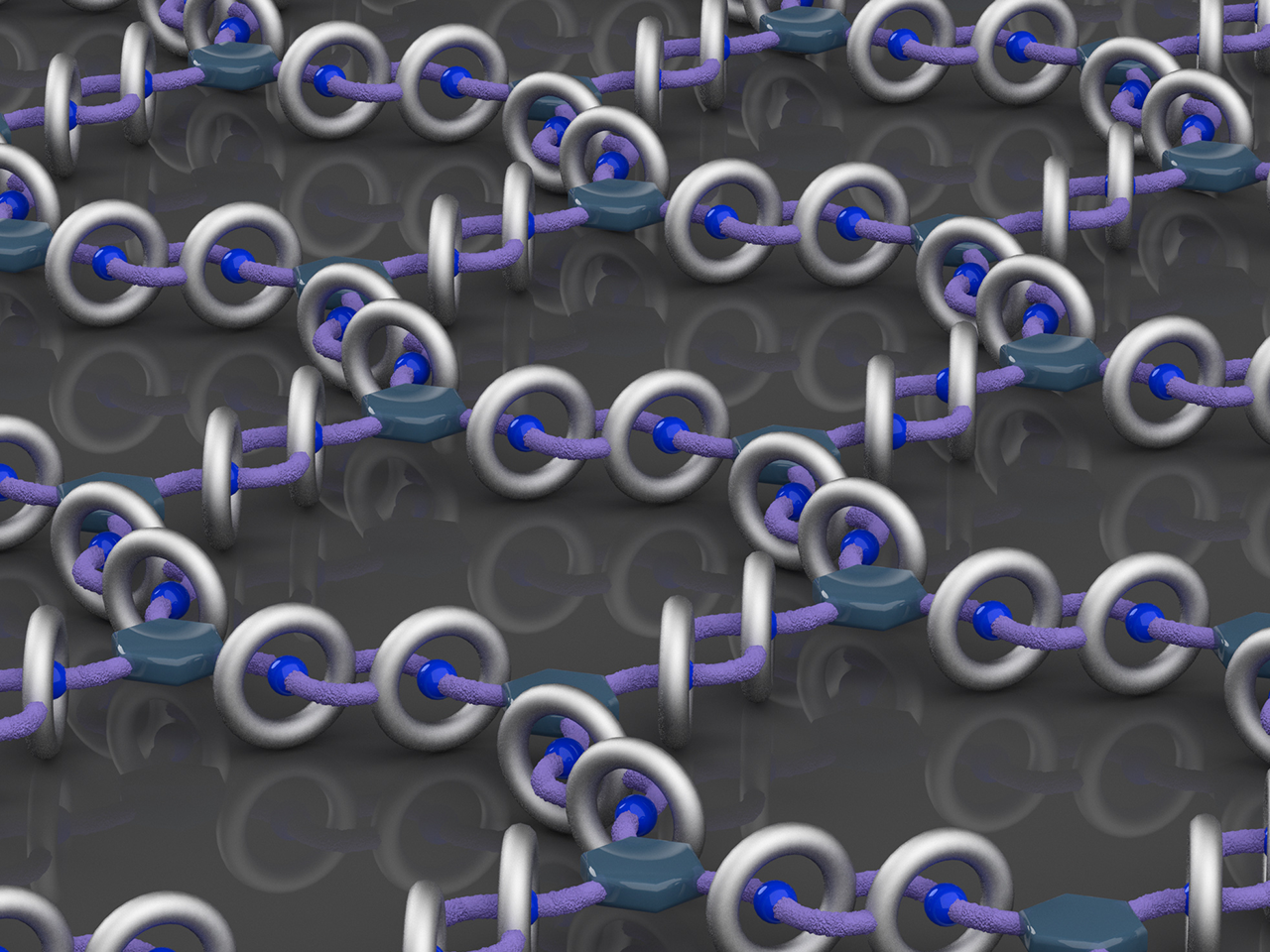

Publishing in the journal Nature Synthesis, the study led by Professor Zhichang Liu’s team at Westlake University reports the synthesis of a purely organic crystalline 2D MIP with long-range order, resolving the age-old trade-off between flexibility and rigidity. The polymer contains 3 billion periodically arranged [c2]daisy chain per square centimeter—each acting like interlocking rings—allowing it to bend without breaking while maintaining exceptional stiffness. In a [c2]daisy chain unit, each component consists of a macrocycle and an axle. When two such components interpenetrate, each macrocycle threads through the other’s axle, creating in two distinct mechanical bonds.

MIPs face a dilemma that either crack under stress (rigid types), or deform irreversibly (flexible gels). This new molecular chainmail combines both traits, functioning like a microscale bulletproof fabric.

To resolve this paradox, Liu’s team devised a synergistic strategy combining crystallization preorganization and post-interlocking. Starting with flexible tritopic monomers, they preorganized them into a long-range ordered honeycomb network, then used light to achieve molecular stitching. “This is mechanically interlocking at the molecular scale,” explained Professor Zhichang Liu, the study’s corresponding author. “Our method transforms random oligoether chains into highly ordered crystalline networks.”

Serendipity Meets Strategy

“We aimed for a molecular cage but ended up with a honeycomb,” said lead scientist Professor Zhichang Liu. “We designed monomers based on [c2]daisy chain because they offer high flexibility and scalability—key traits for artificial molecular muscles. These motifs can provide adaptive binding to guest molecules within cages, but the surprise was their spontaneous assembly into an infinite 2D network instead of a finite cage.”

Liu is the inaugural Principal Investigator (PI) of the Department of Chemistry at Westlake University and an affiliate member of International Institute for Sustainability with Knotted Chiral Meta Matter (SKCM²) of Hiroshima University. Zheng-Bin Tang, a PhD candidate in Liu’s laboratory, is the study’s first author.

With the aid of the synchrotron radiation technique, the team uncovered a hierarchical self-assembly process from monomers to dimers, hexamers, and ultimately honeycomb networks. These layers were stacked into hexagonal prisms. The photoinitiated thiol-ene click chemistry further transformed the pseudo-[c2]daisy chain into fully interlocked units via complementary non-covalent bonding interactions. “The in situ molecular stitching proves the polymer is composed of mutually interlocking monomers,” explained Tang.

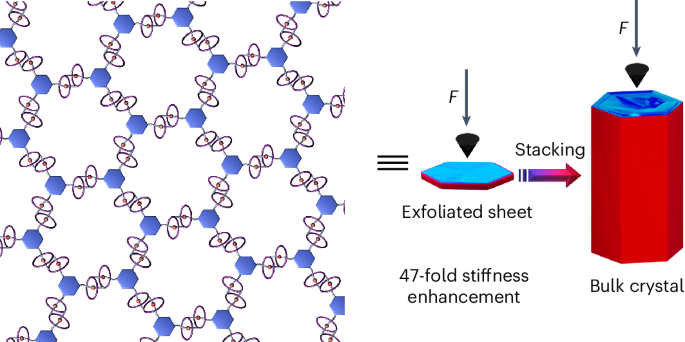

Liu’s team found that the bulk crystals could be peeled into ultrathin layers—like peeling a crepe cake in different solvents. Strikingly, these layers became 47 times stiffer than the original bulk material while retaining structural symmetry. “It defies convention: thinner isn’t weaker here. Think of it as molecular chainmail—rigid yet flexible,” said Tang.

The team is now testing the material’s response to heat, pressure, and pH changes. “Imagine armor that hardens on impact,” Liu mused. “We’re years away, but the potential is thrilling.”

Supported by the National Natural Science Foundation of China, the ‘Spearhead’ and ‘Leading Goose’ R&D Program of Zhejiang Province, and facilities at Westlake University. Collaborators include researchers from Anhui University and Xiamen University.

The paper is titled “Synthesis of a crystalline two-dimensional [c2]daisy chain honeycomb network” In addition to Liu and Tang (Zheng-Bin Tang @TzzzzB_), the other authors of the paper are Lifang Bian, Xiaohe Miao, Helei Gao, Lin Liu, Qike Jiang, Dengke Shen, Lijun Xu, Andrew C.-H. Sue, Xiaorui Zheng

Nature Synthesis | DOI: 10.1038/s44160-025-00791-x | Accepted Date: March 17, 2025
