Over the last few decades, genomic sequencing of plague samples –both present-day and ancient strains recovered from skeletons– has been used to understand how plague strains are related to each other along their genealogy. These studies have produced very interesting findings like that the strain of plague that spread through Europe during the Black Death is a direct ancestor of the plague that started the Third Pandemic more than 400 years later^[1], and that plague outbreaks were tied to human trade^{[2, 3]}.

But genomic sequencing, especially when combined with microbiological experiments, can also be used to understand the evolution of pathogens. Efforts to understand the evolution of Yersinia pestis have revealed how the bacterium evolved from the ancestral Yersinia pseudotuberculosis, a far less lethal pathogen causing mild diarrhea^{[4, 5]} and how quickly it evolved during its 5000 years of existence^[6].

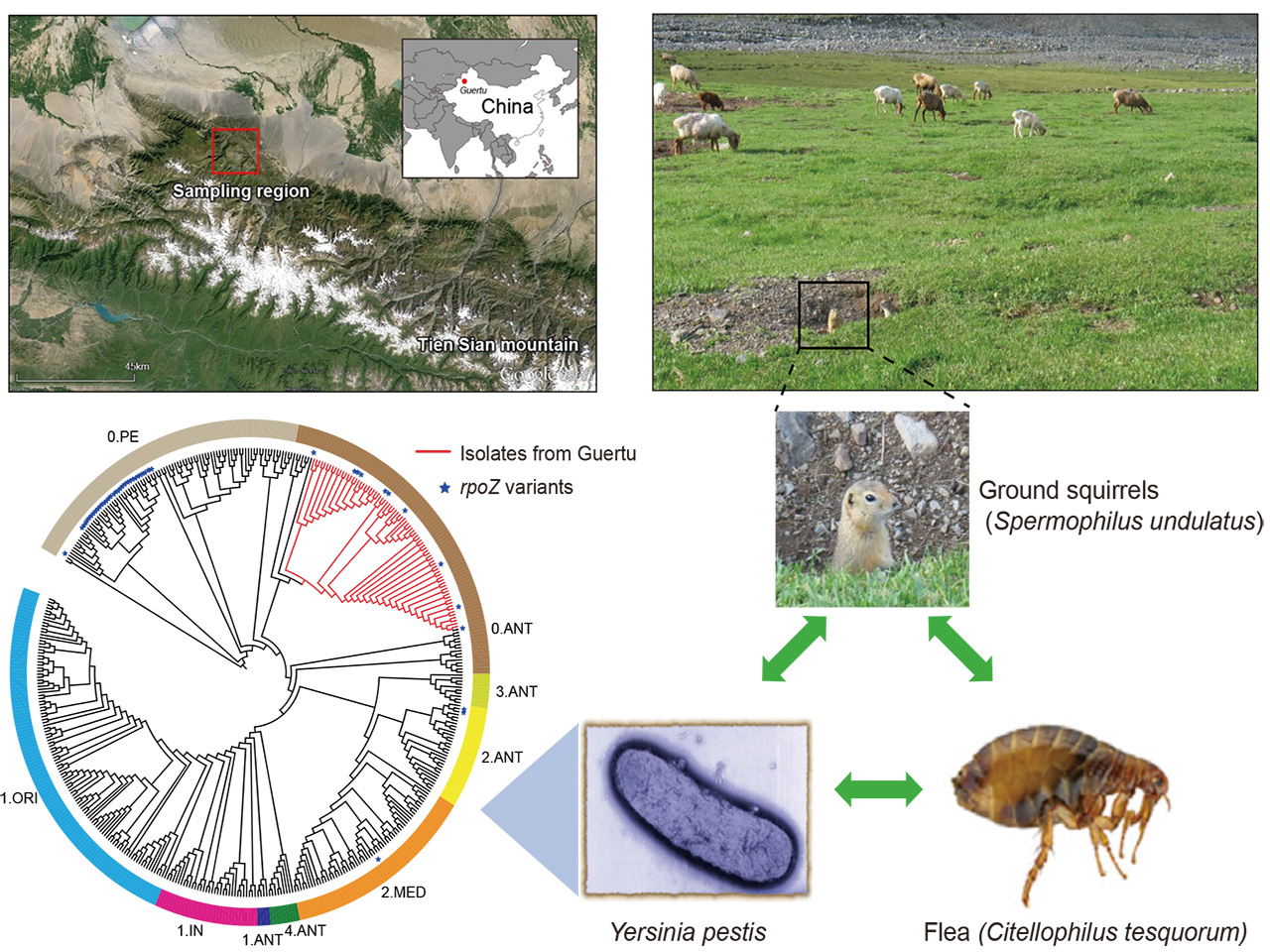

In 2007, we proposed a project to look at the evolution of Y. pestis in a small-scale region in order to better understand how this pathogen evolves within its natural habitat over short time scales and which natural parameter affects the pathogen’s variation. We selected the Guertu region in the Tien Shan mountains in north-west China, for which we had 78 frozen isolates dating from 1967 to 2006.

A genome-wide study of Yersinia pestis in an eco-evo context

By analysing the Y. pestis genetic variation within the plague ecosystem, we saw broad genetic drifts happening, with lineages expanding and disappearing. Remarkably, we identified a single gene, the omega subunit of RNA polymerase (rpoZ), which in more than 10% of the sampled isolates contained DNA sequence variants. This was far higher than what one would expect by a random pattern of mutation, indicating the presence of a strong positive selection signal for variants of this particular gene.

Previous studies had demonstrated in other bacteria that variants of rpoZ were associated with increased biofilm formation. These biofilms play an important role in the transmission cycle of plague, affecting two of the known ways in which plague can spread from fleas to rodents (biofilm-dependent transmission and early-phase transmission^[7]). We confirmed in an in vitro setting that the rpoZ variants in the local plague strains in the Guertu plague reservoir also resulted in an increased level of biofilm formation.

Next, we asked the question: which natural factor, or driver, was responsible for the different variants of rpoZ? We collected environmental data for the period covered by our genomic data, including temperature, precipitation, flea index and rodent density, in order to better understand selective dynamics of the gene mutations of Y. pestis. Crunching the numbers, we found that it was colder and drier weather (coinciding with decreasing rodent host populations) that created a selective pressure in favor of the observed rpoZ variants. However, we were at first unable to understand the evolutionary significance of the observed selective pressure. Within the collaborative team we had long discussions how understand the observed dynamics evolutionarily. Then we suddenly understood: One of us (NCS) realized – on a flight between Oslo and Beijing – that what we saw was an example of Richard Dawkins’ Extended Phenotype concept, published in his 1982 book^[8]: the rpoZ variants affected the behavior of the flea vector so as to maximize the plague bacterium’s own fitness. For verifying this concept with our data, Drs. Yujun Cui and Boris V. Schmid, the two co-first authors, spent extensive time to analyze the data. They, together with Professor Kjetill Sigurd Jakobsen and the two of us interacted a lot on the analysis and the interpretation of the results – and finally were able to put together what we think is a very interesting contribution both to our understandings of the plague system as well as to evolutionary biology.

Our conclusions are based upon a time-series type of analysis that combines genetic and climatic data. Of course, we – as well as one of the reviewers of our Nature Communications submission – would have liked to confirm this extended-phenotype proposition experimentally. However, experimental work with Yersinia pestis using a living flea vector is quite understandably restricted by high level of biosafety requirements. In the field, where we could observe the in vitroincrease in biofilm formation, we had no appropriate lab-facilities to test the behavior of these plague variants in vivo. Transporting living samples of plague across China to our facilities into Beijing, a city of over 20 million people, was likewise impossible. However, we are now building the necessary lab-facilities in China’s southern Yunnan province. Hopefully in a few years we will be able to show you the experimental results building on our current publication in Nature Communications.

URL for the paper:  https://www.nature.com/articles/s41467-019-14099-w

This Behind the Paper post is co-authored by Nils Chr. Stenseth and Ruifu Yang with contributions from Yujun Cui, Boris V. Schmid and Kjetill Sigurd Jakobsen, all co-authors of the Nature Communication paper.

References

1.         Bos KI, Schuenemann VJ, Golding GB, Burbano HA, Waglechner N, Coombes BK, McPhee JB, DeWitte SN, Meyer M, Schmedes S, Wood J, Earn DJ, Herring DA, Bauer P, Poinar HN, Krause J: A draft genome of Yersinia pestis from victims of the Black Death. Nature 2011, 478(7370):506-510.

2.         Morelli G, Song Y, Mazzoni CJ, Eppinger M, Roumagnac P, Wagner DM, Feldkamp M, Kusecek B, Vogler AJ, Li Y, Cui Y, Thomson NR, Jombart T, Leblois R, Lichtner P, Rahalison L, Petersen JM, Balloux F, Keim P, Wirth T, Ravel J, Yang R, Carniel E, Achtman M: Yersinia pestis genome sequencing identifies patterns of global phylogenetic diversity. Nat Genet 2010, 42(12):1140-1143.

3.         Namouchi A, Guellil M, Kersten O, Hansch S, Ottoni C, Schmid BV, Pacciani E, Quaglia L, Vermunt M, Bauer EL, Derrick M, Jensen AO, Kacki S, Cohn SK, Jr., Stenseth NC, Bramanti B: Integrative approach using Yersinia pestis genomes to revisit the historical landscape of plague during the Medieval Period. Proc Natl Acad Sci U S A 2018, 115(50):E11790-E11797.

4.         McNally A, Thomson NR, Reuter S, Wren BW: 'Add, stir and reduce': Yersinia spp. as model bacteria for pathogen evolution. Nat Rev Microbiol 2016, 14(3):177-190.

5.         Sun YC, Jarrett CO, Bosio CF, Hinnebusch BJ: Retracing the evolutionary path that led to flea-borne transmission of Yersinia pestis.Cell Host Microbe 2014, 15(5):578-586.

6.         Cui Y, Yu C, Yan Y, Li D, Li Y, Jombart T, Weinert LA, Wang Z, Guo Z, Xu L, Zhang Y, Zheng H, Qin N, Xiao X, Wu M, Wang X, Zhou D, Qi Z, Du Z, Wu H, Yang X, Cao H, Wang H, Wang J, Yao S, Rakin A, Li Y, Falush D, Balloux F, Achtman M, Song Y, Wang J, Yang R: Historical variations in mutation rate in an epidemic pathogen, Yersinia pestis. Proc Natl Acad Sci U S A 2013, 110(2):577-582.

7.         Bland DM, Jarrett CO, Bosio CF, Hinnebusch BJ: Infectious blood source alters early foregut infection and regurgitative transmission of Yersinia pestis by rodent fleas. PLoS Pathog 2018, 14(1):e1006859.

8.         Dawkins R: The extended phenotype, the long reach of the gene. Oxford University Press,ISBN 0-19-288051-9 1982.
