Location, Location, Location: An Inside/Outside Story of Heterogeneous CO2 Photocatalysis

Published in Chemistry
Location, Location, Location: An Inside/Outside Story of Heterogeneous CO2 Photocatalysis

From time-to-time in the field of nanochemistry, serendipity yields nanoscale materials and morphological delights that inspire discoveries in the fields of advanced materials and biomedical science/engineering. Indeed, it is often serendipity that plays this role of co-inventor.

In a sense, this proved to be the case for a study involving the infiltration of Ni2+ into siloxene nanosheets derived from the layered calcium silicide, Zintl-phase Ca2Si. Here, the chosen solvent for the Ni2+ precursor controlled the final location of the Ni nanoparticle guest, with respect to the stacked siloxene nanosheet hosts, thereby also determining the activity and selectivity of this heterogeneous photocatalyst towards the gas-phase hydrogenation of CO2 to form CH4 or CO.

In brief, researchers at the University of Toronto, Canada, and Karlsruhe Institute of Technology, Germany, discovered that conducting the aforementioned reaction in water, H2O, resulted in the so-formed Ni nanoparticles being directed predominantly to the external surface of the layered siloxene host material. In contrast, these nanoparticles were mainly confined between siloxene layers when the reaction was performed using ethanol, EtOH (see Figure 1). This difference in location was pleasingly revealed by state-of-the-art 3D electron tomography (see Figure 2).

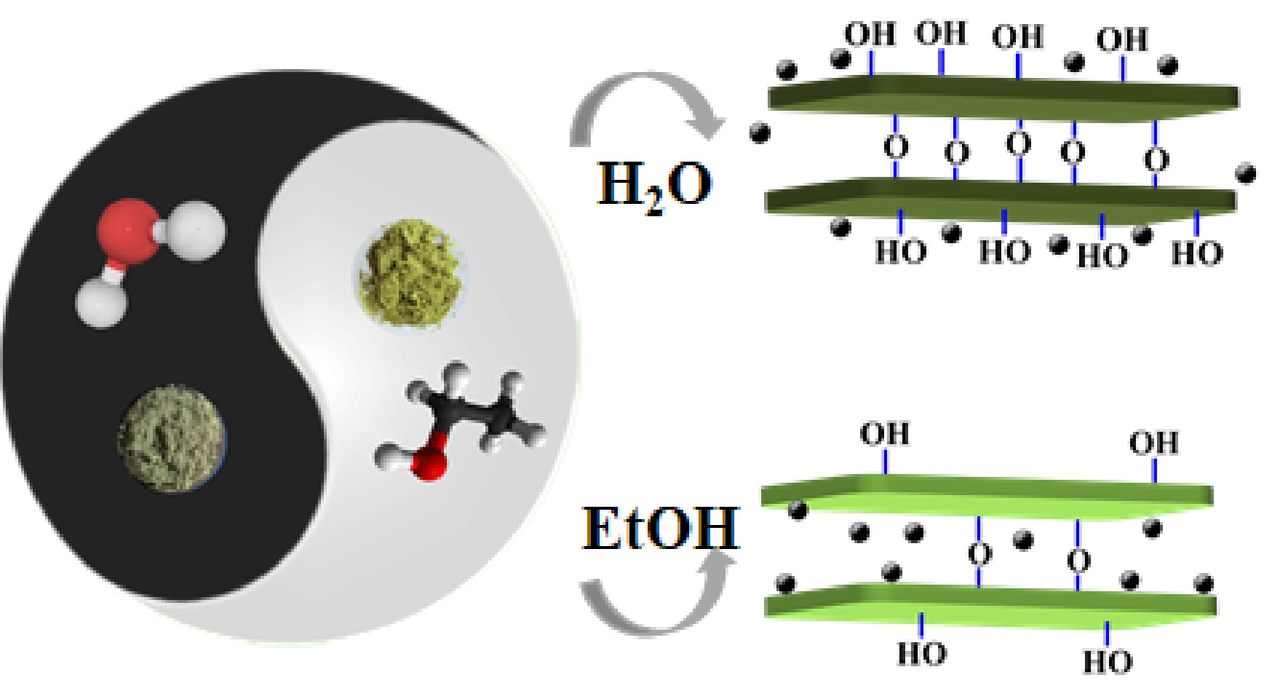

Figure 1. Differing structures of two Ni2+-impregnated siloxene nanosheets samples using H2O or EtOH. The Taijitu symbolizes the fact that, when used as the solvent, H2O and EtOH, result in two distinct composite structures, despite being derived from the same Ca2Si precursor. The black spheres around the green SiXNS slabs represent Ni2+ ions.

The differing locations of the Ni nanoparticles were traced to the extent of hydrolytic poly-condensation and crosslinking between the siloxene layers during the impregnation process. In essence it was discovered that higher levels of interlayer crosslinking occurred in the presence of H2O, restricting access of the Ni2+ precursor to the interlayer spaces and resulting in the nucleation and growth of Ni nanoparticles on the exterior of the siloxene hosts. By contrast, lower levels of interlayer crosslinking in the presence of EtOH forced Ni2+ infiltration, nucleation and growth process to occur within the interlayer spaces, resulting in Ni nanoparticles being confined therein.

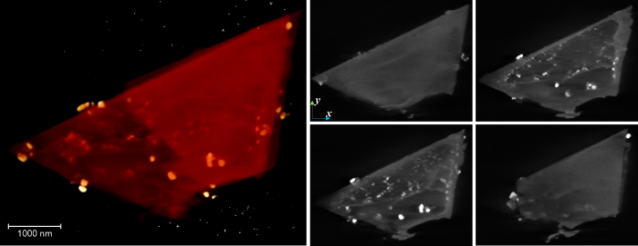

Figure 2. Left: A screenshot image depicting the volume-rendered 3D reconstruction of a nickel siloxene composite particle synthesized using ethanol as solvent. Right: Four images of slices obtained at different z depths of nickel silioxene particle, definitively indicating that the nickel nanoparticle guests are confined internally within the siloxene host.

Notably, the internally confined nickel nanoparticles demonstrated significantly enhanced selectivity towards CH4 over CO, relative to those located externally. In addition, local heating of the high-optical-absorption black Ni nanoparticles, via the photothermal effect, served to slightly accelerate the reaction kinetics but did not alter the selectivity (see Figure 3).

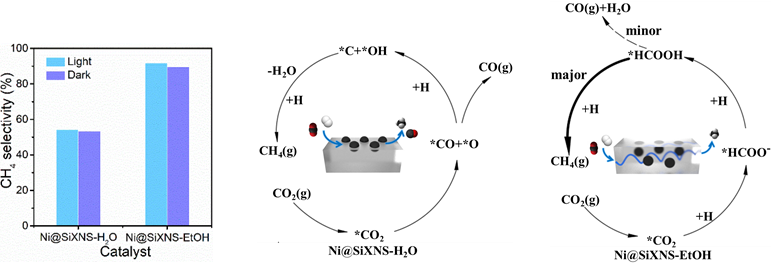

Figure 3. Left: CH4 selectivity of nickel silioxene samples for CO2 methanation under light and dark conditions. Right: Catalytic CO2 reduction pathways for nickel siloxene samples made in H2O and in EtOH showing key reaction intermediates detected by DRIFTS.

While the less spatially restricted, externally confined Ni catalyst does not sterically impede surface chemistry or much discriminate between the reaction-pathways towards CO and CH4 products, the more spatially constrained, internally-confined Ni catalyst enforces a more tortuous surface for the reaction, which strongly favors further reduction to CH4.

The lesson of the story: location matters in heterogeneous CO2 catalysis.


(Written by Professor Geoffrey Ozin, revised and organized by Professors Wei Sun and Xiaoliang Yan, with acknowledged editing by Dr. Paul Duchesne)
