Supported gold catalysts play an important role in many catalytic reactions, such as CO oxidation, water-gas shift (WGS) reaction and oxidative reforming of methane. However, Au nanoparticles (NPs) are tending to sinter at high temperature because of its low Tammann temperature, resulting in poor on-stream stability.

Strong metal-support interaction (SMSI), an important concept in heterogeneous catalysis, has been studied extensively since it was termed by Tauster et al. in the late 1970s. The classical SMSI was widely found for platinum group metals supported on reducible oxides, such as TiO₂ and CeO₂, upon high-temperature reduction pretreatment. However, unlike platinum group metals, it has been well-recognized for a long time that Au cannot manifest SMSI due to its low work function and low surface energy. In 2017, our group demonstrated the existence of classical SMSI between Au and TiO₂ for the first time and the encapsulation of Au by TiO_x overlayer was also observed (Sci Adv, 2017, 3, e1700231). Whereas SMSI state is reversible that the formed TiO_x overlayer will retreat under further oxidation pretreatment at high temperature (＞400 ^oC), leading to invalid effect on the catalytic performance of the gold. Therefore, it is urgent to propose an original strategy to construct an overlayer containing Ti species on Au, which is endurable under oxidative atmosphere.

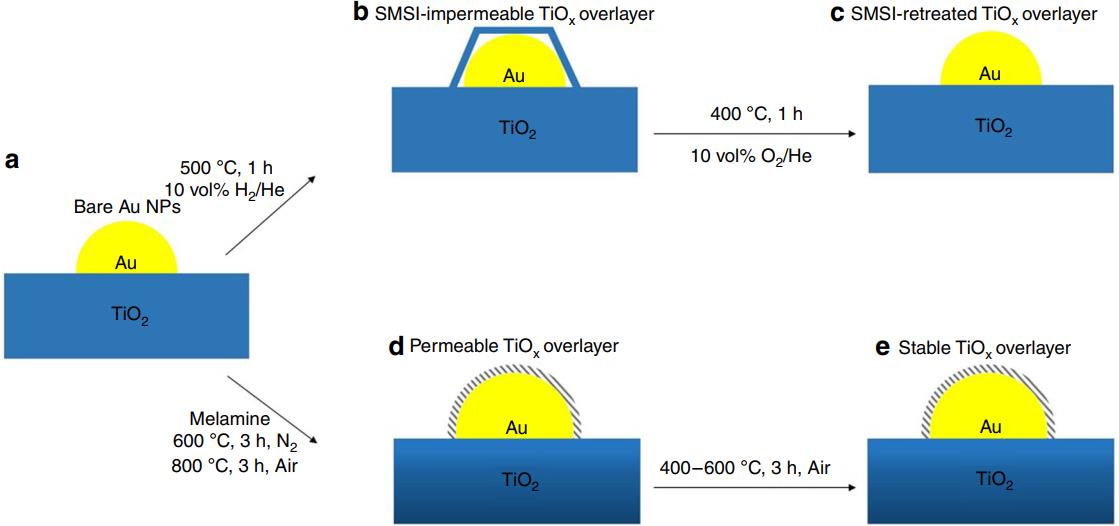

Figure 1. SMSI and melamine-induced TiO_x overlayer structure and behavior. a Bare Au nanoparticles on TiO₂. b Au/TiO₂ catalyst that forms an impermeable SMSI TiO_x overlayer after treatment with 10 vol% H₂/He at 500 ^oC. c SMSI TiO_x overlayer retreats when exposed to oxidation condition at 400 ^oC which is almost similar with that in a. d Melamine-modified catalyst that forms a permeable TiO_x overlayer after treatment with N₂ at high temperature (600 ^oC) followed by treatment with air at 800 ^oC. e Stable melamine-induced TiO_x overlayer under air condition modifies the Au NPs catalytic bahavior.

Here, we reported that Au NPs can be encapsulated by a permeable TiO_x overlayer under oxidative atmosphere, the reverse of the condition required for classical SMSI. We found that the key to construct the above cover layer is the application of melamine and pretreatment in nitrogen condition, followed by calcination at 800 ^oC in air atmosphere. More importantly, this TiO_x overlayer was stable upon further calcination under oxidation condition, which is contrary to the classical SMSI. In order to confirm the valance of the Ti species, electron energy loss spectroscopy (EELS) was examined and it was found that the Ti species existed as Ti³⁺ oxidation state, in consistent with the classical SMSI. And X-ray adsorption spectroscopy was also employed to investigate whether new bond was formed and the fitting results revealed that new Au-Ti bond was formed when the encapsulation occurred. Owing to the formation of the overlayer, the resultant catalyst is resistant to sintering and exhibits high activity as well as excellent durability in WGS reaction and simulated practical testing. Moreover, this original strategy can be extended to colloidal Au supported on TiO₂ and commercial gold catalyst named RR2Ti. We believe these new findings provide a new avenue to rationally devise and develop highly stable Au catalysts with controllable activity.
