Advances on photonic van der Waals integration

Advanced epitaxy and layer lift-off technologies ushers a vast range of single-crystalline 3D optical thin-films with diverse functionalities, featuring artificial van der Waals (vdW) interfaces like 2D materials for vdW integration, for hatching record-setting devices and novel polaritonic physics.

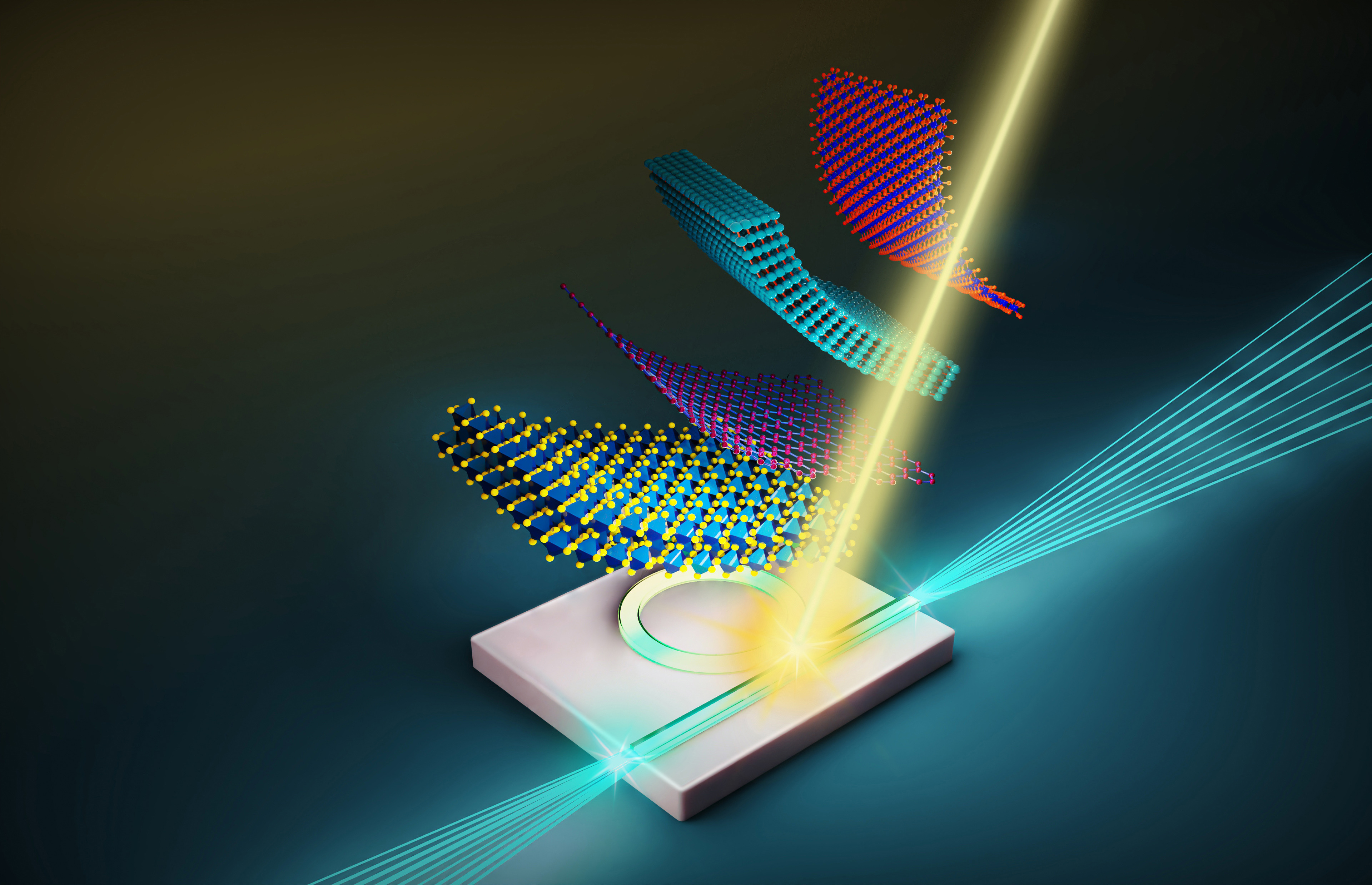

Advances on photonic van der Waals integration
Like

Share this post

Choose a social network to share with, or copy the shortened URL to share elsewhere

This is a representation of how your post may appear on social media. The actual post will vary between social networks

The hetero-integration of functional optical materials with photonic structures not only underpins massive high-performance optoelectronic applications, but also enables an ideal playground to explore optical coupling and polaritonic physics.

The concept of van der Waals (vdW) integration was originally proposed in two-dimensional (2D) materials communication for the physical assembly of 2D vdW building blocks to design electronic devices and heterostructures [1]. Recent advances on 2D-materials assisted epitaxy [2, 3] and layer lift-off technology [4, 5] have enabled a wide spectrum of single-crystalline thin-films that can be delaminated from the substrate into freestanding forms with artificially defined vdW interfaces [6]. This unveils exciting perspectives that 3D crystals can be also made into ultrathin, flexible, and transferrable to arbitrary substrates and photonic structures for advanced optical and optoelectronic applications [7, 8]. Novel vdW heterostructures are also enabled by combining those 2D and 3D freestanding nanomembrane building blocks [9] to prototype record-setting hetero-integrated photonic devices in previously inaccessible layouts, or exploring exotic nanophotonic physics hatching from mixed-dimensional vdW interfaces [10].

Fig. 1

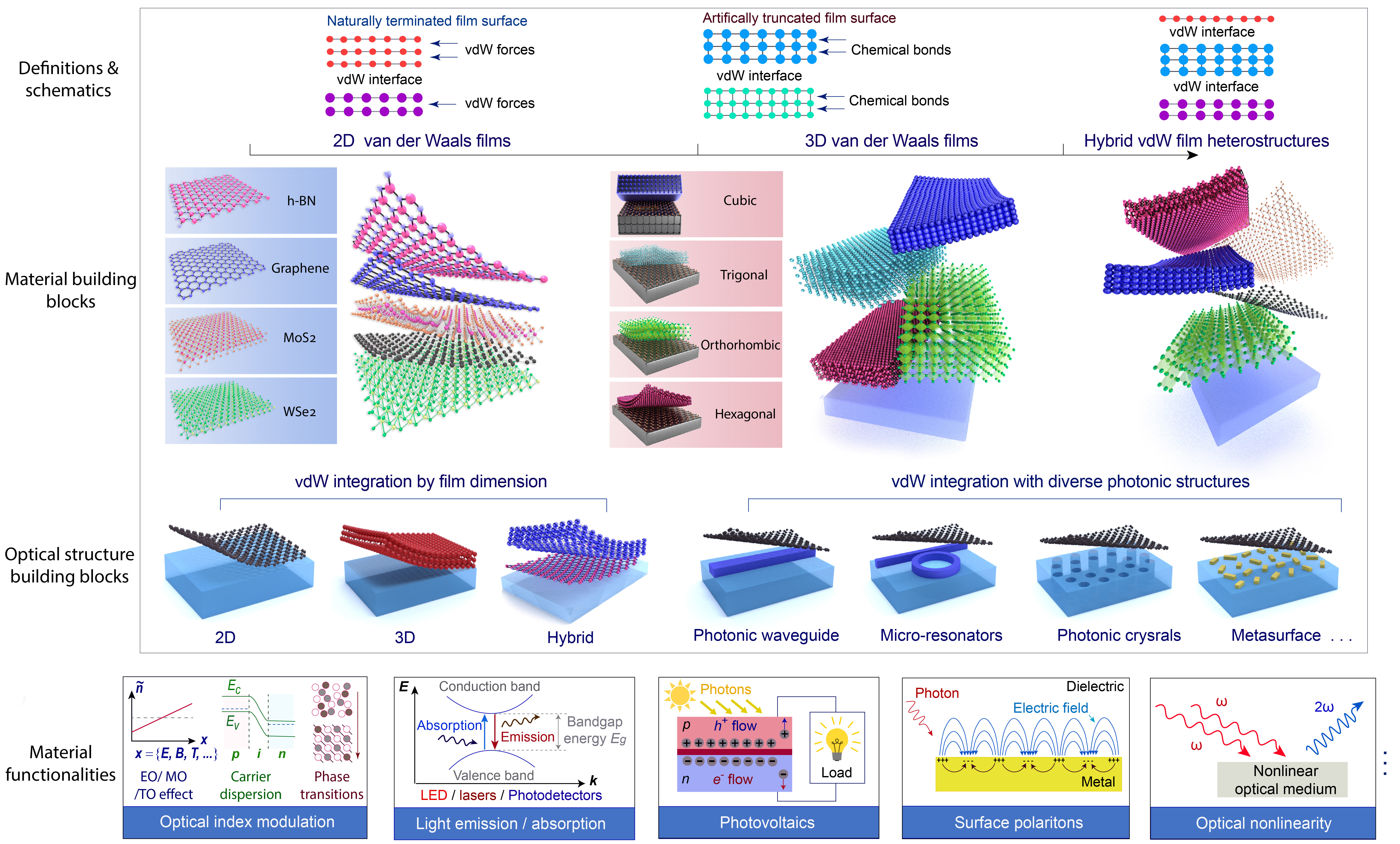

Figure 1. Freestanding functional nanomembranes for photonic vdW integration. Two-dimensional (2D) van der Waals (vdW) films are monolayer lattices with intralayer covalent bonds and interlayer vdW interactions. By contrast, three-dimensional (3D) freestanding films feature intralayer chemical bonds as in the bulk and clearly truncated boundaries artificially created via layer lift-off techniques. Both 2D and 3D nanomembranes possess vdW interfaces and various optoelectronic functionalities, and can be used as building blocks for photonic vdW integration.

In a recent Review paper published on Nature Reviews Materials, a group of authors from USA, Singapore, and Korea presented a comprehensive survey on latest progress of photonic vdW integration of 2D and 3D freestanding nanomembranes. The 3D freestanding films also possess signature vdW interfaces like 2D materials. However, distinctive from 2D materials that have natural layered lattices bounded by vdW interactions, 3D freestanding films has chemical bonds throughout the film (Fig. 1, top) and they are artificially delaminated from parent substrates via diverse layer lift-off techniques [3, 4]. They can be readily transferred to prefabricated photonic structures such as optical (or plasmonic) waveguides [11], micro-resonators [12], photonic crystals, and metasurfaces [8], to name a few (Fig. 1, bottom).

A vast collection of currently available 3D freestanding films with diverse optical functionalities are also summarized (Fig. 2). Fundamental photonic properties of these vdW films and their hybrid heterostructures are catalogued with representative applications and exemplary functionalities, such as the optical gain, photovoltaic, electro-optical (EO) or magneto-optical (MO) medium, creating new opportunities in advanced photonic hetero-integration. Detailed guidelines from 2D and 3D vdW film preparation to device implementation are outlined as well.

Fig. 2

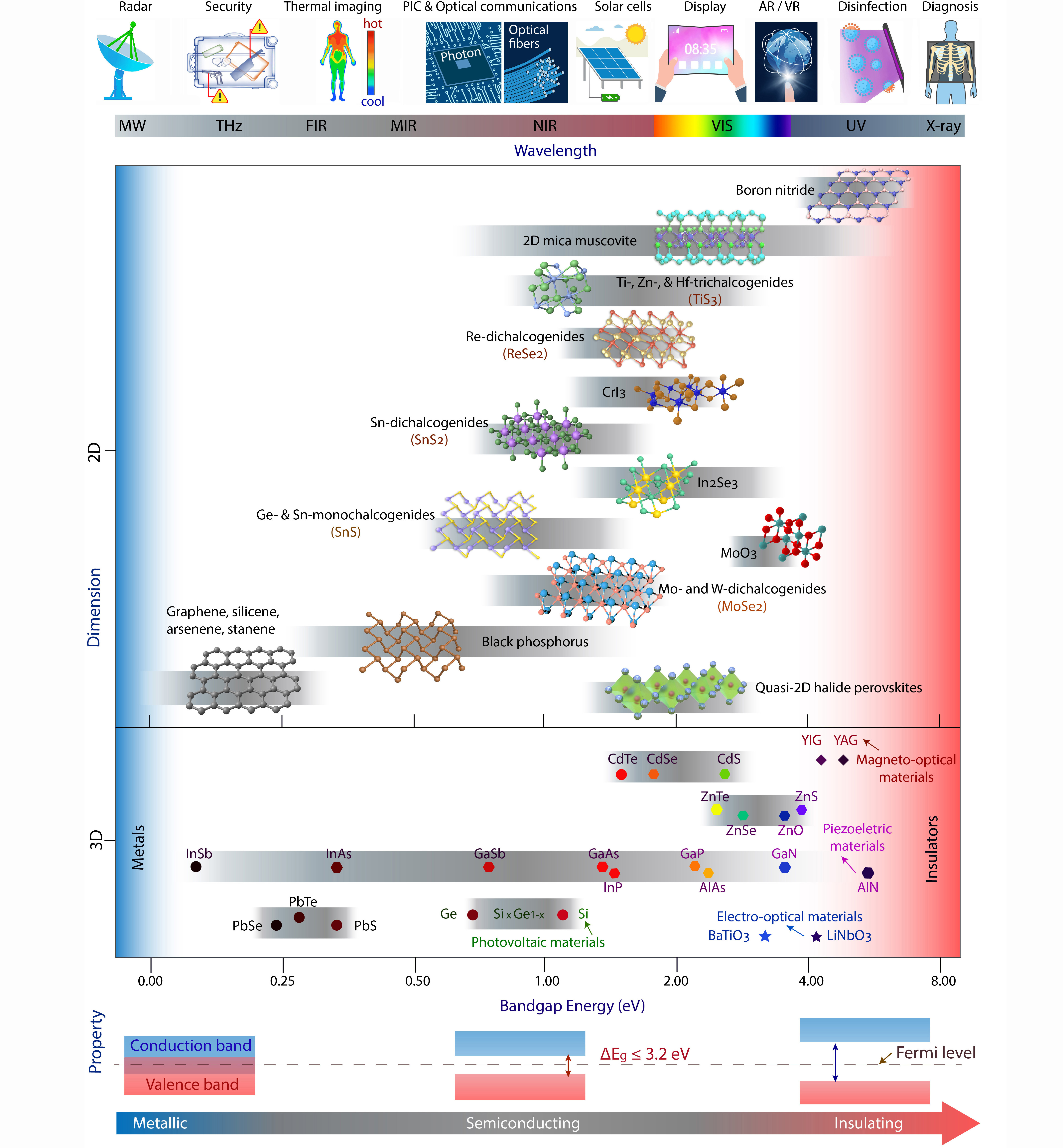

Figure 2. Fundamental properties of photonic vdW films. 2D and 3D freestanding films organized according to their bandgap and electronic responses. Exemplary applications are outlined according to the materials’ operation wavelengths. PIC: photonic integrated circuits. AR/VR: augmented reality and virtual reality. IR: infrared.

Awaiting challenges in this field for scalable 2D and 3D nanomembranes manufacture and layer transfer, as well as emerging opportunities for advanced vdW hetero-integration, flexible, and bio-compatible photonic applications are also discussed based on current perspectives. For additional information, please refer to the review paper with information below.

Corresponding authors: Prof. Sang-Hoon Bae (WUSTL), Prof. Cheng-Wei Qiu (NUS), Prof. Lan Yang (WUSTL), Prof. Jin-Wook Lee (SKKU).

Article Information:

Yuan Meng, Jiangang Feng, Sangmoon Han, et al. Photonic van der Waals integration from 2D materials to 3D nanomembranes, Nature Reviews Materials (2023).

DOI: 10.1038/s41578-023-00558-w

Article link:

https://www.nature.com/articles/s41578-023-00558-w

References:

[1] Y. Liu, et al. Van der Waals integration before and beyond two-dimensional materials, Nature, 567, 323–333 (2019).

[2] H. Kim, et al. Remote Epitaxy, Nature Reviews Methods Primers, 2, 40 (2022).

[3] S. -H. Bae, et al. Integration of bulk materials with two-dimensional materials for physical coupling and applications, Nature Materials, 18, 550–560 (2019).

[4] H. Kum, et al. Epitaxial growth and layer-transfer techniques for heterogeneous integration of materials for electronic and photonic devices, Nature Electronics, 2, 439–450 (2019).

[5] J. A. Rogers, et al. Synthesis, assembly and applications of semiconductor nanomembranes, Nature, 477, 45–53 (2011).

[6] Y. Kim, Chip-less wireless electronic skins by remote epitaxial freestanding compound semiconductors, Science, 377, 859-864 (2022).

[7] Z. Dai, et al. Artificial metaphotonics born naturally in two dimensions. Chemical Reviews, 120, 6197–6246 (2020).

[8] H. Lin, et al. Engineering van der Waals materials for advanced meta-photonics. Chemical Reviews, 122, 15204–15355 (2022).

[9] H. Kum, et al. Heterogeneous integration of single-crystalline complex-oxide membranes, Nature, 578, 75-81 (2020).

[10] A. Castellanos-Gomez, et al. Van der Waals heterostructures, Nature Reviews Methods Primers, 2, 58 (2022).

[11] Y. Meng, et al. Optical meta-waveguides for integrated photonics and beyond, Light: Science & Applications 10, 235 (2021).

[12] L. Shao, et al. Non-reciprocal transmission of microwave acoustic waves in nonlinear parity–time symmetric resonators, Nature Electronics, 3, 267–272 (2020).
