Background

For minimally invasive flexible surgery, where natural orifices are leveraged to minimize damage and shorten recovery time, surgeons envision an ideal surgical tool that combines passive flexibility to navigate tortuous anatomical structures and active steerability for operating at a distal target. However, two paradoxes arise: a slender tube cannot simultaneously be soft for tissue protection and rigid for force exertion, and its motion cannot be both passively flexible for propagation and actively controllable for operation.

Biologically Inspiration

The snake displays remarkable flexibility in its slender shape, but replicating its flexible motion abilities directly in robots proves costly, with substantial increases in material costs, control complexity, and overall robot sizes. We have discovered that the unique locomotion abilities of the snake stem from their serially chained multiple segmental spines. Additionally, hundreds of vertebrae are activated by the spinal cord, which traverses the vertebral canal, branching spinal nerves at every level to connect muscle fibers. Simultaneously, the muscles in sequential segments are nourished by the only major distributing artery, which carries blood pumped from the heart, branching into successively smaller vessels that culminate as capillaries, supplying essential nutrients.

New Strategy

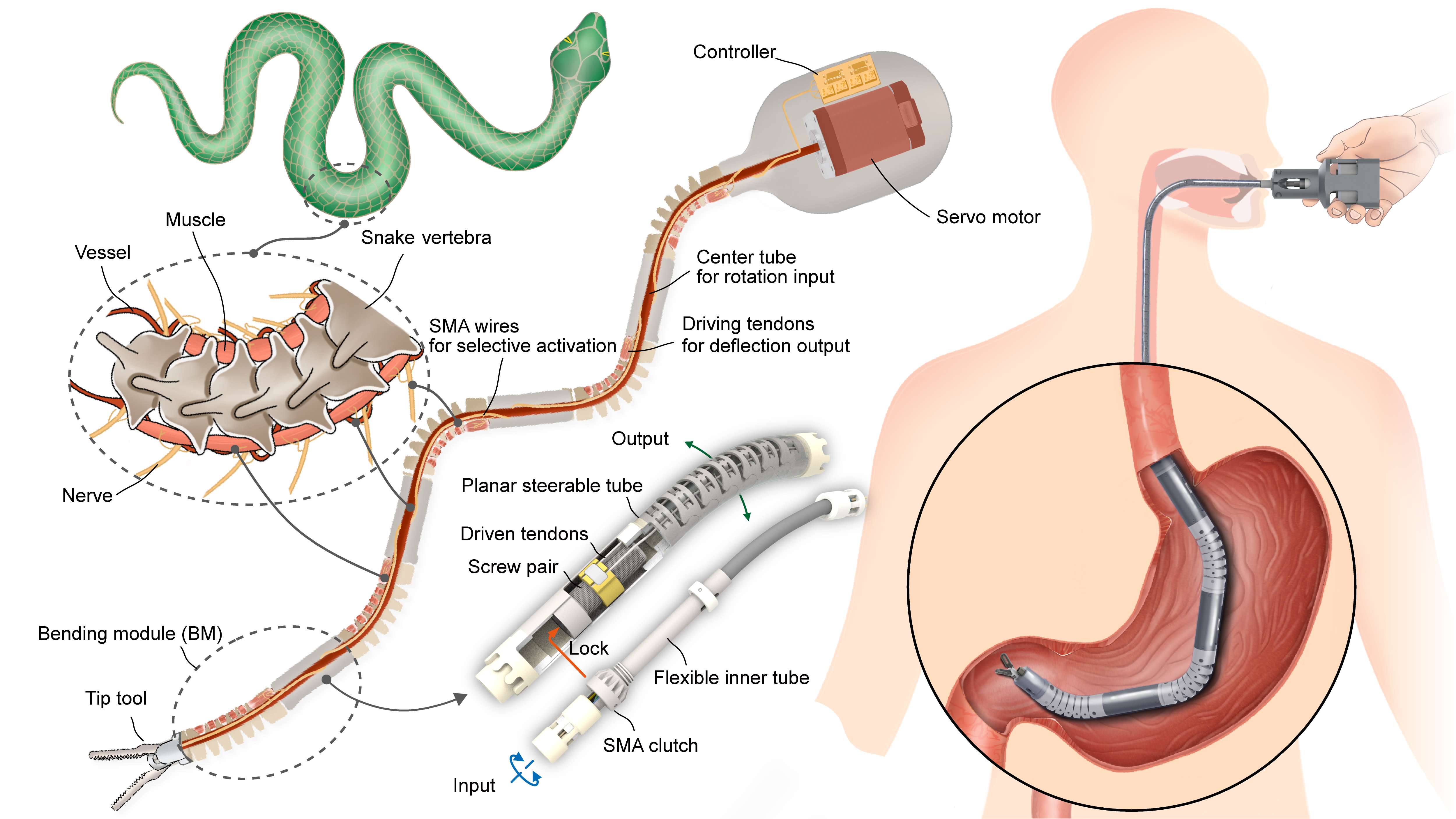

Motivated by the mechanism observed in snakes, where hundreds of vertebrae are activated by a singular spinal cord and nourished by the exclusive major distributing artery, our design integrates a flexible shaft nested inside another flexible hose to transmit a universal rotation. The flexible shaft is compliant to bending while remaining rigid to transmit axle rotation, thereby resolving the first paradox. The universal rotation then actuates numerous bending modules serially connected to the flexible shaft, offering expandable degrees of freedom (DoF) and effectively addressing the second paradox.

Overview

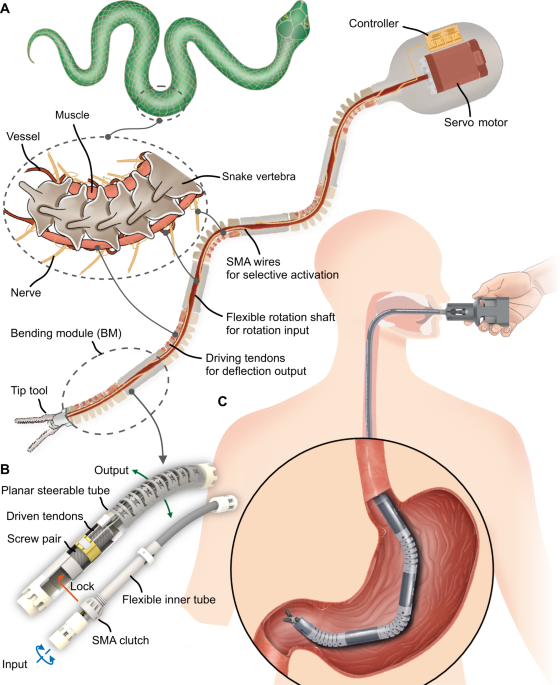

The handheld robot was elongated by a passive extension tube with a rotation shaft. Bending modules, each comprised of a flexible inner tube and a planar steerable tube, are sequentially attached to the passive extension tube. Flexible inner tubes are connected to the rotation shaft. A clutch, driven by Shape Memory Alloy (SMA), is designed and positioned in the interlayer between the flexible inner tube and the planar steerable tube. This clutch is responsible for transmitting the rotation input from the flexible inner tube to the bending output of the planar steerable tube. Based on time-share driven strategy, bending modules are actuated independently by a single motor.

Conclusion

In this work, inspired by the unique structure of the snake spine and the intricate nerve-muscle-vessel relationship in biology, we proposed a time-share driven mechanism. This mechanism leverages a single motor to activate multiple bending modules. Our approach is based on three fundamental principles – Universal Transmission, State Keeping, and Selective Response. We illustrated this concept through the design of a planar steerable tube, serving as the 'muscle,' a flexible inner tube representing the 'vessel,' and the utilization of a SMA clutch as the 'nerve' for activation. Collectively, we made a prototype consisting of only one motor and multiple bending modules that adhere to these principles. These bending modules can be fabricated with different motion ranges, assembled in multiple bending plane combinations, lengthened by passive extension tubes, and integrated with various tip instruments, which makes the robot customized and task-oriented. Consequently, this prototype embodies a lightweight, cost-effective, and multi-degree-of-freedom (DOF) robot. It can be handheld, navigates through confined spaces, and establishes a workspace over obstacles.

Acknowledgments

We extend our gratitude to Z. Zhang from Hangzhou Risheng Medical Technology Co., Ltd for providing advanced machining technology, H. Lu and J. Zhang from Hangzhou SKONSIN Health Co., Ltd. for supplying a customized endoscope. Special thanks to J. Jing from Zhejiang Provincial People’s Hospital for consultations regarding potential surgical applications. We also appreciate the Laboratory Animal Center of Zhejiang University for providing the standard animal experiment site and consultations.
