Engineered Membranes For Fouling Mitigation In Water Separation

Utilizing surface patterning in membrane filtration can reduce membrane fouling and while enhancing permeability. Taking this step further, combining surface patterning and feed spacer principles to create a surface-patterned membrane with feed spacer-like characteristics can advance this endeavor.
Published in Sustainability
Engineered Membranes For Fouling Mitigation In Water Separation

Share this post

Choose a social network to share with, or copy the shortened URL to share elsewhere

This is a representation of how your post may appear on social media. The actual post will vary between social networks

In the quest to combat the global water shortage, membrane filtration processes stand as an inspiration of hope. They hold the power to transform many sources of water into safe and potable water, offering a solution to the ever-growing problem of water scarcity. However, their sustainability hinges on minimizing energy consumption and enhancing operational lifetimes. The scourge of membrane fouling poses a significant obstacle to these goals. Membrane fouling occurs when unwanted substances accumulate on the membrane's surface and within its pores due to complex chemical or physical interactions. This accumulation reduces water flux, necessitating higher pressure and thus greater energy consumption. Traditional mitigation strategies include costly physical and chemical cleaning, pre-treatment, and membrane surface modification. Unfortunately, these methods often fall short in restoring optimal membrane performance after repeated cleaning cycles. In the relentless pursuit of a solution that sidesteps the need for these cumbersome treatments, researchers embarked on a journey of hydrodynamic innovation. They pursued two distinct paths, each with its promise.

The First Path: Surface Patterning

One path, illuminated by the creation of surface patterns on membranes through various micromolding techniques, offered a glimmer of hope. This method, with its roots extending back to 1986, was first introduced to enhance the performance of hyperfiltration membranes. These surface-patterned membranes, which are also referred to as corrugated membranes in the literature, bear distinct morphologies and patterns on their surfaces. The magic of these patterns lies in their ability to reduce membrane fouling. By promoting turbulence, secondary flows, and heightened shear stresses near the membrane's surface, these patterns minimize the interaction between the membrane and foulants. Consequently, adsorption and deposition of foulants on the membrane surface weaken. Moreover, these patterns increase the membrane's effective surface area, resulting in enhanced water permeation compared to their unpatterned counterparts. Although early efforts yielded encouraging improvements in water permeation, the full potential of surface patterning remained untapped. However, research in this field gained momentum in the early 2000s. Scientists started unraveling the intricate ways in which these patterns impacted mass transfer, energy consumption, and bio/organic fouling. Patterns emerged on various scales, from nano to macro, employing techniques like phase separation micromolding (PSµM), nanoimprint lithography (NIL), embossing micromolding (EµM), and embossing macromolding (EmM), among others.

The Second Path: Embracing Feed Spacers

The second path led to the embrace of feed spacers. Conventional feed spacers, often designed as diamond or square nets, create feed flow channels in Spiral Wound Membrane (SWM) modules. They also enhance mixing near the membrane surface and, in turn, mitigate membrane fouling. However, their impact is limited to the unobstructed regions between the spacer filaments, resulting in the creation of stagnant zones near the spacer's filaments and where they intersect. This stagnation can result in significant fouling. Feed spacers also induce a noticeable increase in pressure drop because the fluid encounters resistance as it flows over the spacer's surface. Additionally, they promote the formation of numerous turbulent eddies, giving rise to areas of low pressure and additional impediments that the fluid must navigate around the spacer's filaments. As a result, the fluid slows down, causing a heightened pressure drop, subsequently raising the energy requirements. Stiff spacers also harbor the potential to inflict damage upon the membrane during module manufacturing or high-pressure filtration. Despite research efforts aimed at optimizing feed spacer geometries, challenges persisted. These included the stagnation zones, the stiffness of the spacers, and the imminent threat of membrane damage during high-pressure filtrations or module manufacturing.

The Convergence: A New Innovation

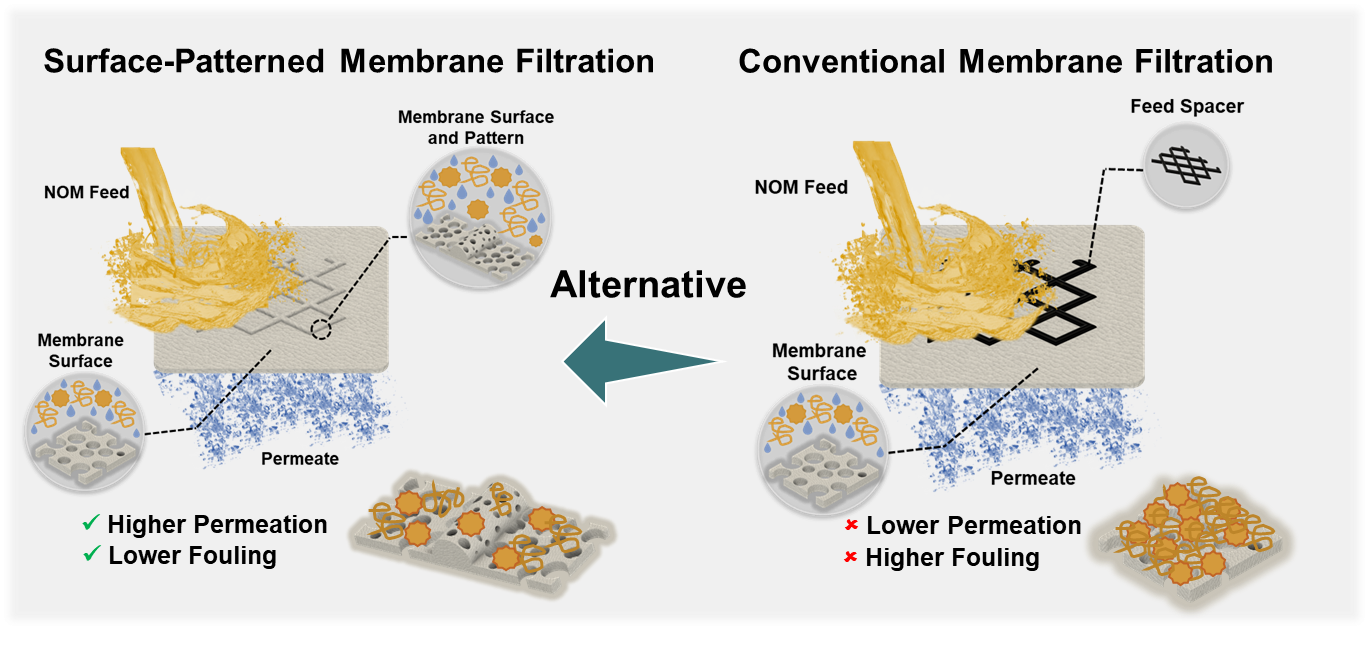

In a narrative that reads like a scientific thriller, these two hydrodynamic paths converged, leading to an innovation in membrane filtration. In our recent study, we merged surface patterning and feed spacer concepts to craft a novel membrane filtration process—one that operated seamlessly without traditional feed spacers. Polyethersulfone (PES) membranes took center stage, now decorated with macro-scale surface patterns that resemble the familiar diamond (D) feed spacer. An innovative honeycomb (HC) geometry was also woven into the fabric of membrane design. The results were nothing short of remarkable. These surface-patterned membranes showed advantages aplenty. Their enlarged surface area, compared to their flat-sheet counterparts, translated to a more substantial effective filtration area, enhancing water flux. In fact, water flux rates were found to be ~45% to 68% higher than those of spacerless flat PES membranes and ~29% to 30% greater than flat PES membranes with traditional feed spacers. Even more astonishing, these patterned membranes displayed remarkable resilience against fouling by natural organic matter (NOM) in both short and long-term filtration experiments. Their ability to recover flux far surpassed that of the flat PES membrane, signaling superior anti-fouling performance, even in the presence of feed spacers.

The Future Signs: Spacerless Membrane Filtration

In closing, this tale of research and innovation presents an example of hope in the world of water purification. The fusion of surface patterning and feed spacer technology has the potential to revolutionize membrane filtration. It addresses the age-old adversary of fouling while opening doors for improved efficiency and sustainability in the production of clean drinking water. Challenges and hurdles undoubtedly lie ahead, but this research represents a resounding step in the right direction—a leap toward a brighter, more efficient future in water purification technology. For readers interested in delving deeper into this topic, a link to the full article is provided.
