Immunohistochemistry (IHC) has long been a cornerstone of tissue analysis, offering invaluable insights into the cellular makeup of tissues, particularly in cancer research. As precision medicine evolves, the need to characterize tumors at a single-cell level has never been more critical. The key current challenge is quantifying numerous biological markers simultaneously in a single tissue section. Traditional IHC methods, while reliable, fall short in this regard. They can typically only visualize and quantify a handful of biomarkers at a time, leaving researchers searching for a more comprehensive solution.

The complexity of cancer lies in its heterogeneity. Each tumor is unique, with a complex landscape of genetic and molecular features that define its behavior and response to treatment. To truly embrace precision medicine, we need to move beyond the limitations of conventional techniques to identify tumors’ unique composition and microenvironments. The ability to simultaneously analyze multiple biomarkers within a single tissue section is thus essential for understanding the intricacies of tumor biology and for developing effective targeted therapies.

 The Limitations of Conventional Techniques

Immunofluorescence, a technique that builds upon traditional IHC, was a significant advancement. By using different fluorophores, researchers can stain multiple proteins within cells and tissues, providing a more detailed picture of the molecular landscape. However, this technique has its limitations. The visible spectrum only allows for a limited number of simultaneous immunofluorescent labels—typically fewer than six—due to the broad emission spectra and spectral overlaps of the fluorophores. As a result, researchers are often forced to make difficult choices about which biomarkers to prioritize, potentially missing critical information.

This limitation is a significant bottleneck in cancer research, where the ability to analyze a wide range of biomarkers is crucial. A tumor's response to treatment can be influenced by multiple factors, and without the ability to assess all relevant biomarkers simultaneously, researchers risk overlooking key elements that could inform more effective therapies.

 Introducing FLEX: A New Approach to High-Multiplexed Biomarker Imaging

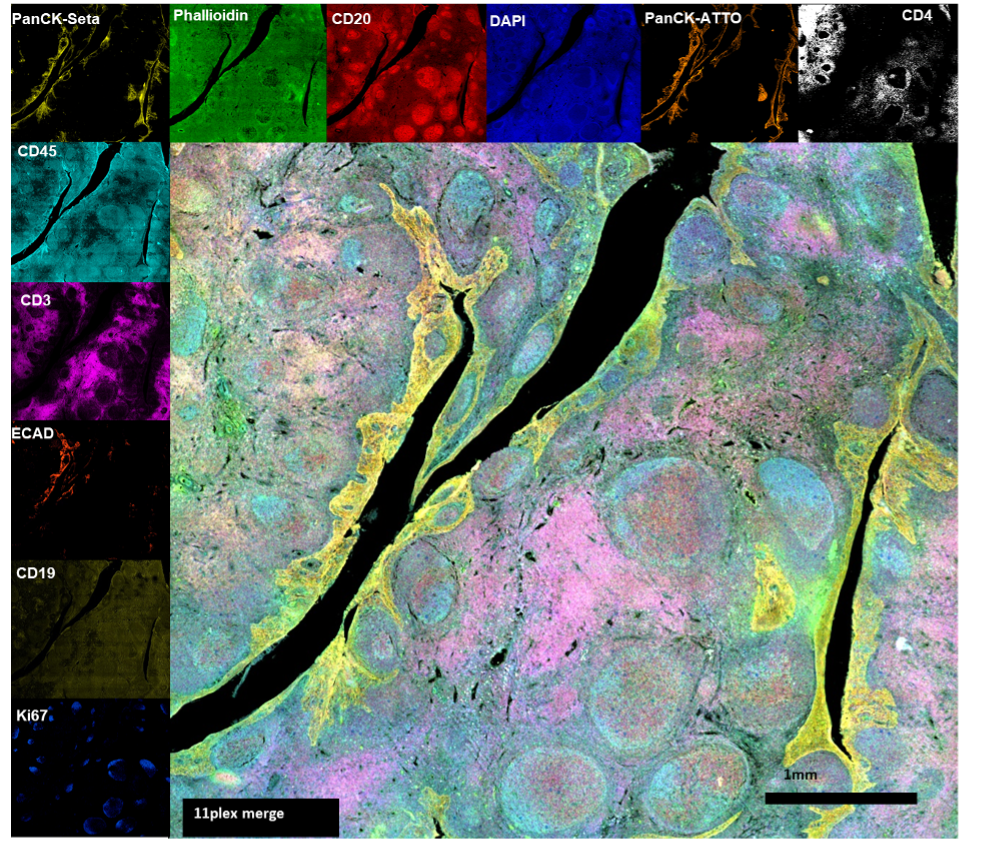

To address this challenge, we have developed an innovative solution called Fluorescence Lifetime multiplEXing (FLEX). FLEX is a highly multiplexed imaging approach allowing up to 11-plexed biomarker imaging within a single tissue sample in 3D. Unlike conventional immunofluorescence, FLEX leverages not only the fluorescence spectrum of fluorophores but also their unique fluorescence lifetimes, which are determined by their chemical structures.

By incorporating fluorescence lifetime as an additional dimension, FLEX enables the simultaneous visualization and quantification of a far greater number of biomarkers within a single tissue section. This breakthrough technology overcomes the spectral overlap issue that limits traditional immunofluorescence techniques to just a handful of targets. With FLEX, researchers can now analyze up to 11 different biomarkers in a single tissue sample, providing a more comprehensive understanding of tumor biology.

FLEX in Action: Transforming Cancer Research

The potential applications of FLEX are vast. By pairing the multidisciplinary research environment at Massachusetts General Hospital (MGH) with a close industrial partnership with Intek Scientific, we have demonstrated the potential of FLEX in a groundbreaking study that visualized 11-plex biomarker imaging on a single tissue sample in 3D. This collaboration between academia and industry exemplifies the power of partnerships in advancing scientific discovery. MGH and the Ludwig Center at Harvard, with its deep clinical expertise, identified the need for a more advanced imaging solution, and our team, with its technological expertise, developed FLEX to meet this need.

This partnership not only resulted in the successful development of FLEX but also in the publication of a manuscript that showcases the potential of this technology. Through FLEX, we can accelerate the discovery and development of novel cancer treatments by providing a powerful tool for the precise and personalized characterization of tumor specimens.

The Future of Precision Medicine with FLEX

As we continue to refine and expand the capabilities of FLEX, the implications for precision medicine are profound. With the ability to analyze multiple biomarkers simultaneously, researchers can gain deeper insights into tumor biology, uncovering new therapeutic targets and paving the way for more effective treatments. This is particularly important in the era of personalized medicine, where treatments are tailored to the unique characteristics of each patient's tumor.

The development of FLEX marks a significant step forward in our quest to overcome the limitations of conventional IHC and immunofluorescence techniques. By enabling the high-multiplexed imaging of tumor specimens, FLEX provides the missing piece of the puzzle in immunohistochemistry, unlocking new possibilities for cancer research and treatment.

We believe that FLEX represents a new frontier in biomarker imaging, offering researchers a powerful new tool in cancer and precision medicine. By bridging the gap between traditional techniques and the demands of modern cancer research, FLEX is poised to revolutionize the way we understand and treat cancer, bringing us closer to a future where every patient receives the most effective and personalized care possible.
