Journal Club | Protecting against corrosion with atomic engineering

Improving the corrosion resistance of metals requires understanding the role of and manipulating the atomic configurations at the interface of the metal and the passive film.
Journal Club | Protecting against corrosion with atomic engineering

Stainless steel could now be made even more corrosion resistant thanks to an efficient and low cost technique to improve the stability of its passive oxide surface layer. Results in a recent publication in Nature Communications show that by controlling the crystal structure at the interface of the bulk metal and its oxide layer, the activation time to corrosion initiation in acid was extended up to 130 times compared to the untreated metal.

Metals and alloys form the structure basis of modern society. Over time, and especially in acidic or corrosive environments they decompose, costing $276 billion per year in the United States alone.1 A better understanding of the atomic scale mechanisms of corrosion protection could lead to engineering strategies to improve the lifetime of metal structures.

When metals are exposed to oxygen, they create a surface oxide film called the passive layer which protects the metal from further oxidation. However, in acidic conditions at high oxidizer concentrations, such as those found in the petrochemical and nuclear industries even passivated metals rapidly dissolve, creating a new layer. This “transpassivation” film breaks down the passivation layer and corrodes the underlying metal.

While many protection efforts have focused on the nature of passivation layers themselves, it was the interface between the passivation film and the metal that caught the attention of X. X. Wei and colleagues, authors of the paper.  Previous work on chloride transportation across the passivation film showed accumulation at the metal-film interface, enhancing the dissolution of the metal matrix under electric current.2 Additionally, crystallographic orientations of the metal surface have been theorized to improve corrosion resistance with close-packed atomic planes.  And as early as the 1930s, researchers knew that an anodically-formed oxide film on iron could be completely eliminated in sulphuric acid whereas the same film could survive for longer periods when transferred to a plastic support with no electrical contact with the metal.3,4

Armed with this knowledge, Wei and coworkers sought to experimentally prove the effect of atomic configuration on chloride and acid attack at the metal-passive film interface. In doing so they unlocked a means of exploiting redox chemistry for the atomic construction of a close-packed passivated surface on iron-chromium alloys and commercial stainless steels.

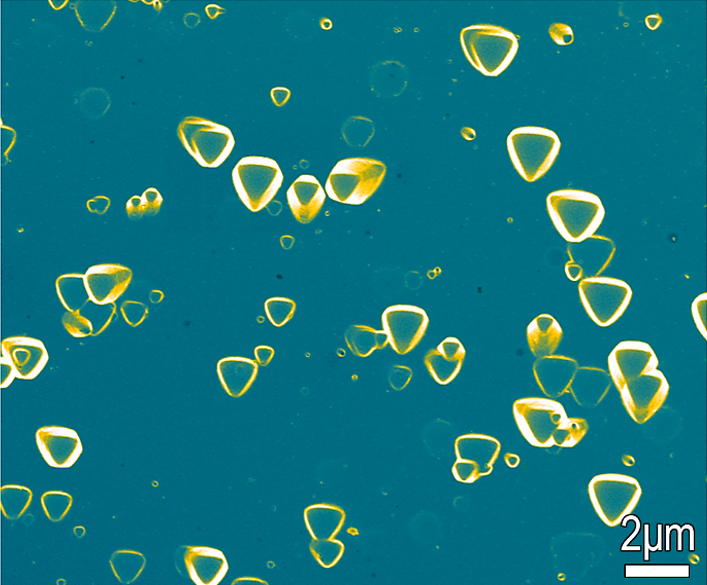

After a three-step passivation treatment, films were immersed in two solutions; one with chloride-containing electrolyte and the other in various concentrations of sulfuric acid. Characterizing these treatments was a particular challenge, as cross-sectional measurements of nanometer-thick layers without damaging or destroying the surfaces require high levels of control. They found that when a sufficient positive voltage is applied, the dissolution of the metal is selective for crystal orientation allowing for the atomic control of the resulting surface. The metal-passive film interface is restructured to include undulations – holes and growth formations – thereby roughening the surface as seen through a scanning electron microscope (SEM) in the above figure. Only the transpassivating, close-packed crystal planes are left behind, increasing the corrosion resistance of the remaining film. The researchers also observed that single crystal surfaces terminated with close packed facets were more stable against oxidation.  Interestingly, mapping the chlorine content in the film showed abundance at the metal side, as opposed to at the metal-passivation layer interface seen in previous studies,2 suggesting that transpassivation inhibits chloride accumulation at the metal interface, possibly responsible for the newly enhanced passivation.

The researchers demonstrated both the importance of and a means to tailor metal-passivation interfaces for corrosion protection. “We hope to generalize the role of low-energy interface in controlling the stability of the film on metals, and consequently in improving the corrosion resistance of metals,” said Dr. X. L. Ma, the principle investigator of the project. Controlling surface crystallographic restructuring forges a new direction for pretreatment processes and anti-corrosion engineering, and mostly importantly, longer-lasting metals.

The original article can be found here:

Wei, X. X. et al. Enhanced corrosion resistance by engineering crystallography on metals. Nature Communications 13, 1–13 (2022) doi:10.1038/s41467-022-28368-8.


  1. Koch, G. H., Brongers, M. P. H., Thompson, N. G., Virmani, Y. P. & Payer, J. H. Cost of corrosion in the United States. Handbook of Environmental Degradation of Materials 3–24 (2005) doi:10.1016/B978-081551500-5.50003-3.
  2. Zhang, B. et al. Unmasking chloride attack on the passive film of metals. Nature Communications 9, 1–9 (2018).
  3. Evans, U. R. Isolation of the Film Responsible for the Passivity of an Iron Anode in Acid Solution. Nature 126, 130–131 (1930).
  4. Evans, U. R. LXVI.—The passivity of metals. Part IV. The influence of acids in passivity and corrosion. Journal of the Chemical Society (Resumed) 478–492 (1930) doi:10.1039/JR9300000478.

Visit Communications Engineering for the latest in engineering research


Please sign in or register for FREE

If you are a registered user on Research Communities by Springer Nature, please sign in

Subscribe to the Topic

Electrical and Electronic Engineering
Technology and Engineering > Electrical and Electronic Engineering

Related Collections

With collections, you can get published faster and increase your visibility.

Applied Sciences

This collection highlights research and commentary in applied science. The range of topics is large, spanning all scientific disciplines, with the unifying factor being the goal to turn scientific knowledge into positive benefits for society.

Publishing Model: Open Access

Deadline: Ongoing
