Assembly drives regioselective azide-alkyne cycloaddition reaction

Metal-free versions of azide-alkyne cycloadditions could find widespread applications in biomedical contexts. Here, the authors report an assembly-driven, regioselective azide-alkyne cycloaddition.
Published in Chemistry
Assembly drives regioselective azide-alkyne cycloaddition reaction
Like

The research group of Prof. Gaolin Liang at Southeast University focuses on the nanochemistry based on click reaction and supramolecular self-assembly (Angew. Chem., Int. Ed. 2023, e202306427; J. Am. Chem. Soc. 2023, 145, 7918; Sci. Adv. 2020, 6, eaba3190; Nat. Commun. 2018, 9, 2550; J. Am. Chem. Soc. 2017, 139, 1041; J. Am. Chem. Soc. 2016, 138, 11128; Angew. Chem., Int. Ed. 2015, 54, 3639-3642), as well as biomedical analysis (Angew. Chem., Int. Ed. 2022, 61, e202114766; J. Am. Chem. Soc. 2022, 144, 11897). We have developed a novel CBT-Cys click reaction and successfully combined with supramolecular self-assembly strategy to develop molecular probes for diseases diagnosis (Nat. Chem. 2010, 2, 54; Nat. Commun. 2019, 10, 1192; Angew. Chem., Int. Ed. 2015, 54, 9700). Based on our combined background, we developed an assembly-driven azide-alkyne cycloaddition reaction for metal-free biomedical implication. This work has been published on Nature Communications very recently.

Azide-alkyne cycloaddition reaction is a very common organic reaction to synthesize nitrogen-containing heterocycles. Once catalyzed by Cu(I) or Ru(II), it turns out to be a click reaction and thus is widely applied in chemical biology for labeling. However, besides their poor regioselectivity towards this reaction, these metal ions are not biologically friendly. Hence, it is an urgent need to develop a metal-free azide-alkyne cycloaddition reaction for biomedical applications. In this work, we found that, in the absence of metal ions, supramolecular self-assembly in an aqueous solution could realize this reaction with excellent regioselectivity (Fig. 1). Nap-Phe-Phe-Lys(azido)-OH firstly self-assembled into nanofibers. Then, Nap-Phe-Phe-Gly(alkynyl)-OH at equivalent concentration approached to react with the assembly to yield the cycloaddition product Nap-Phe-Phe-Lys(triazole)-Gly-Phe-Phe-Nap to form nanoribbons. Due to space confinement effect, the product was obtained with excellent regioselectivity.

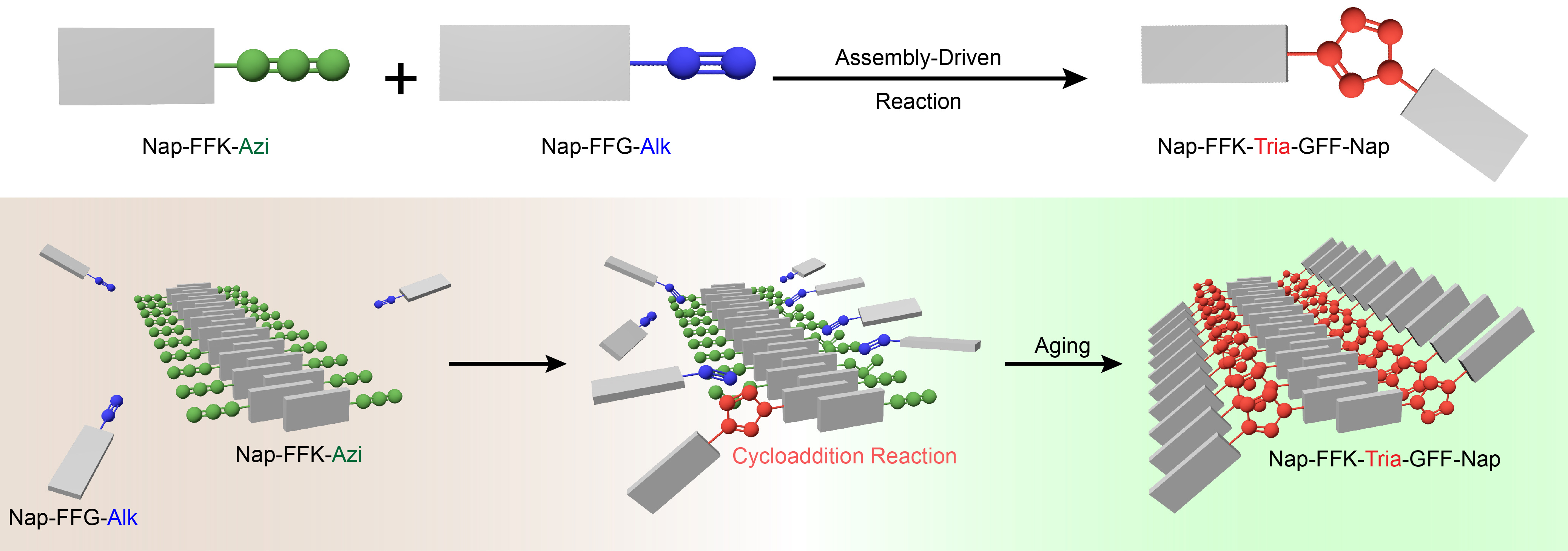

a Chemical structures of Nap-FFK-Azi, Nap-FFG-Alk and Nap-FFK-Tria-GFF-Nap. b Diagram of the regionally selective azide-alkyne cycloaddition reaction driven by assembly. c Schematic illustration of the regionally selective azide-alkyne cycloaddition reaction driven by assembly.

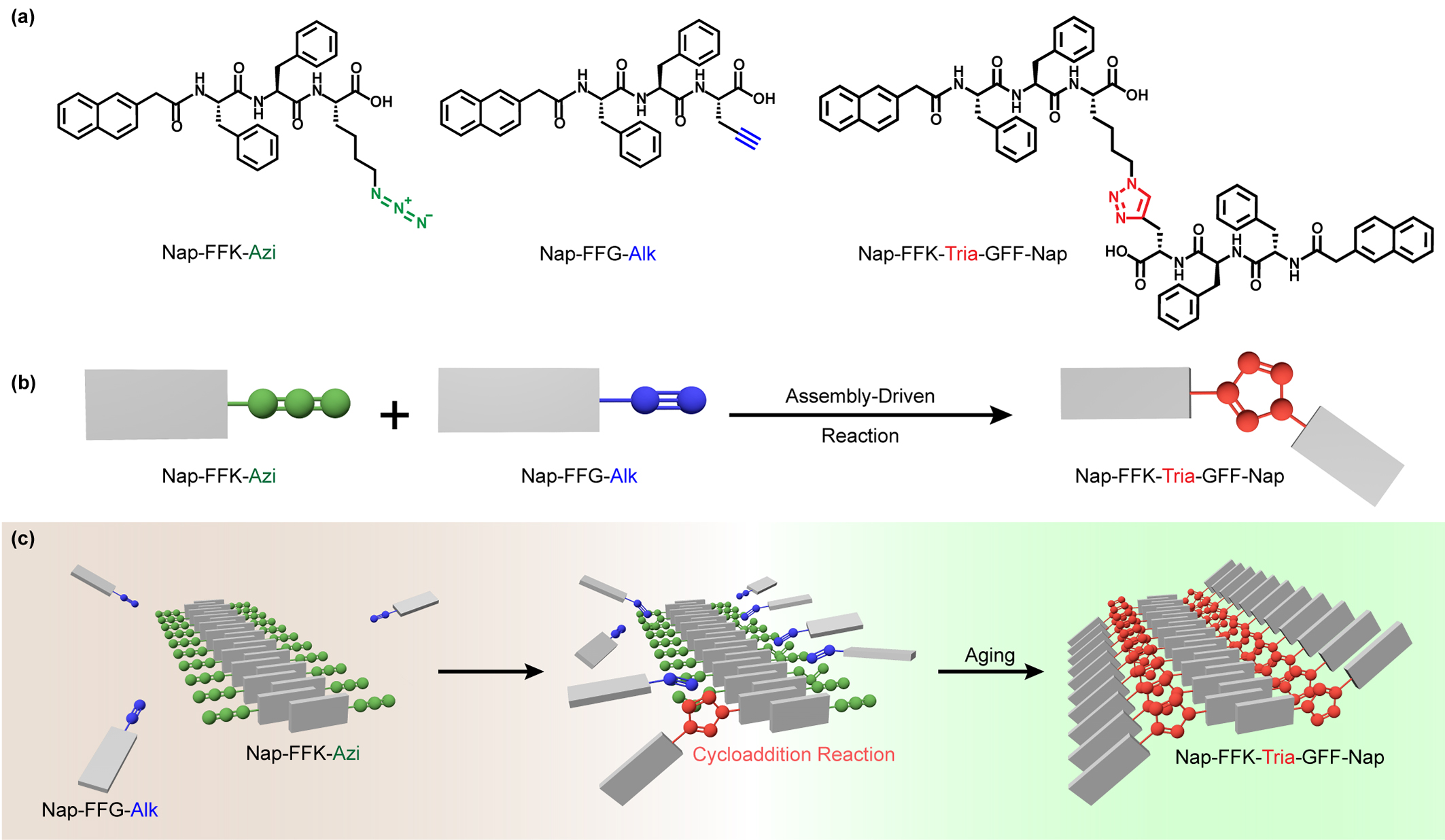

Fig. 1 Regionally selective azide-alkyne cycloaddition reaction driven by assembly. a Chemical structures of Nap-FFK-Azi, Nap-FFG-Alk and Nap-FFK-Tria-GFF-Nap. b Diagram of the regionally selective azide-alkyne cycloaddition reaction driven by assembly. c Schematic illustration of the regionally selective azide-alkyne cycloaddition reaction driven by assembly.

Traditional copper-catalyzed azide-alkyne cycloaddition reaction (CuAAC)

We first synthesized the three compounds Nap-FFK-Azi, Nap-FFG-Alk, and Nap-FFK-Tria-GFF-Nap. Besides from the desired product of Nap-FFK-Tria-GFF-Nap (retention time 20.3 min), the by-product 1,5-isomer of Nap-FFK-Tria-GFF-Nap (retention time 16.1 min) also appeared on the HPLC trace (Fig. 2), suggesting poor regioselectivity of CuAAC.

Fig. 2 Cooper-catalyzed azide-alkyne cycloaddition (CuAAC) between NapHPLC traces of Nap-FFK-Azi (green), Nap-FFG-Alk (blue), and the CuAAC reaction mixture in a (red). Wavelength for detection: 254 nm.

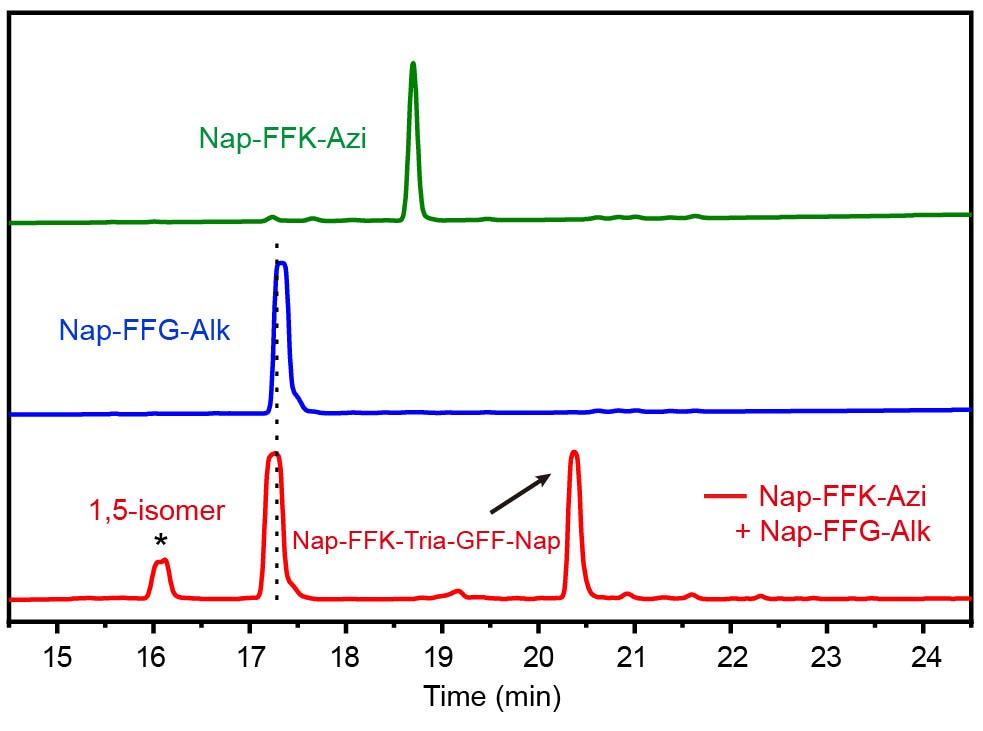

Fig. 2 Cooper-catalyzed azide-alkyne cycloaddition (CuAAC) between Nap-FFK-Azi and Nap-FFG-Alk. HPLC traces of Nap-FFK-Azi (green), Nap-FFG-Alk (blue), and the CuAAC reaction mixture in a (red). Wavelength for detection: 254 nm.

Monitoring of assembly-driven azide-alkyne cycloaddition reaction

As shown in Fig. 3a, after 7 d aging, desired 1,4-disubstituted cycloaddition product Nap-FFK-Tria-GFF-Nap (HPLC retention time 20.3 min) was yielded in the hydrogel. Interestingly, the 1,5-isomer of Nap-FFK-Tria-GFF-Nap was not found in the hydrogel (Fig. 3a), suggesting excellent regioselectivity of this assembly-driven cycloaddition reaction. The reaction yield increased gradually and reached its plateau of 19.1% at 14 d.

Necessary conditions for supramolecular self-assembly in aqueous solution (e.g., hydrophobic interaction, π-π stacking, hydrogen bonding, etc) do not exist in organic solvent such as N,N-dimethylformamide (DMF). When Nap-FFK-Azi and Nap-FFG-Alk remained monomeric state in DMF, no cycloaddition product of Nap-FFK-Tria-GFF-Nap was found in the incubation (Fig. 3a), indicating that the product in above hydrogel was indeed yielded under assembly effect.

In TEM images, dense and slim nanofibers were observed in Nap-FFK-Azi hydrogel, helical ribbons were found in Nap-FFG-Alk hydrogel, and broader helical ribbons presented in Nap-FFK-Tria-GFF-Nap solution. After 7 d aging, besides slim nanofibers, helical ribbons in Nap-FFK-Azi + Nap-FFG-Alk hydrogel was clearly observed (Fig. 3b). Above observations indicated that cycloaddition reaction between Nap-FFK-Azi and Nap-FFG-Alk indeed occurred in the hydrogel after excluding the interference of co-assembly.

CD results confirmed the inference further (Fig. 3c). CD spectrum indicated the β-turn-like structures in Nap-FFK-Azi nanofibers, β-sheet-like structures in helical nanoribbons of Nap-FFG-Alk, and β-sheet-like structures in Nap-FFK-Tria-GFF-Nap nanoribbons. Interestingly, peaks close to those in Nap-FFK-Tria-GFF-Nap solution appeared in the CD spectrum of Nap-FFK-Azi + Nap-FFG-Alk hydrogel, suggesting the nanoribbons in the hydrogel are made of Nap-FFK-Tria-GFF-Nap.

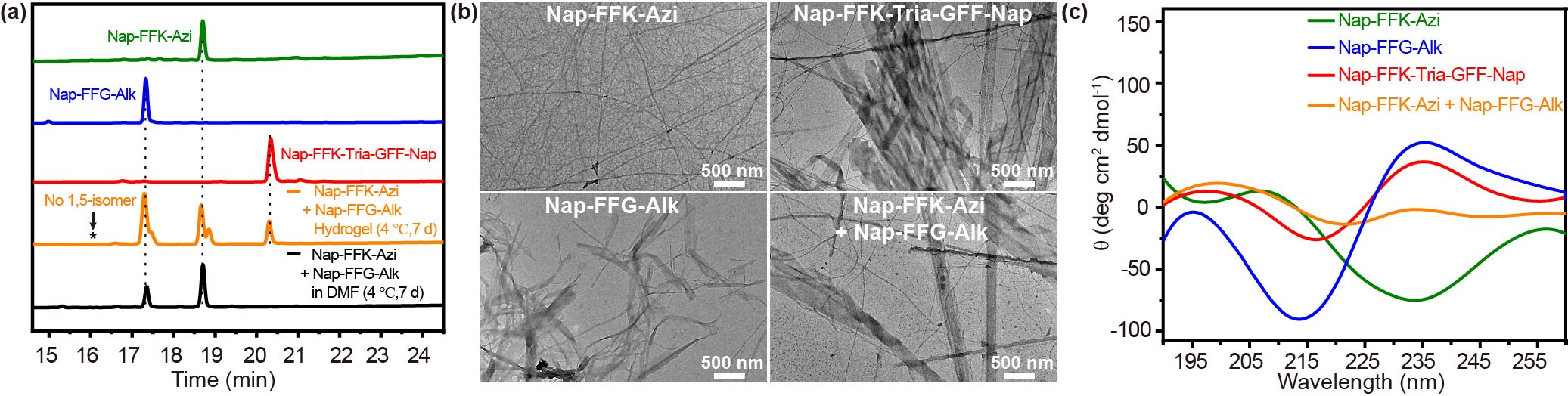

Fig. 3 Characterizations of assembly-driven azide-alkyne cycloaddition reaction. a HPLC traces of 2.5 mM Nap-FFK-Azi (green), 2.5 mM Nap-FFG-Alk (blue), 2.5 mM Nap-FFK-Tria-GFF-Nap (red), 2.5 mM Nap-FFK-Azi + Nap-FFG-Alk hydrogel at 4 °C for 7 d (orange), and 2.5 mM Nap-FFK-Azi + Nap-FFG-Alk in DMF at 4 °C for 7 d (black). Wavelength for detection: 254 nm. b TEM images of 2.5 mM Nap-FFK-Azi hydrogel, 2.5 mM Nap-FFG-Alk hydrogel, 2.5 mM Nap-FFK-Tria-GFF-Nap solution, and 2.5 mM Nap-FFK-Azi + Nap-FFG-Alk hydrogel after aging at 4 °C for 7 d. Scale bar = 500 nm. c CD spectra of the samples in b.

Mechanism of assembly-driven azide-alkyne cycloaddition reaction

To validate the mechanism of assembly-driven regionally selective azide-alkyne cycloaddition reaction, we used TEM observations to real time monitor the formation of above nanostructures. TEM images in Fig. 4a showed that, at 0.5 h, those raw materials at nanoscale for self-assembling into bigger nanostructures (e.g., nanoparticles for nanofiber formation, nanofibers for nanoribbon formation) started to appear in hydrogels of Nap-FFK-Azi and Nap-FFG-Alk, or solution of Nap-FFK-Tria-GFF-Nap. The final nanostructures (i.e., nanofibers in hydrogel Nap-FFK-Azi, nanoribbons in hydrogel Nap-FFG-Alk and solution Nap-FFK-Tria-GFF-Nap) started to form at 3 h and stabilize at 6 h. In contrast, TEM images of Nap-FFK-Azi + Nap-FFG-Alk hydrogel showed that dense and slim nanofibers (i.e., Nap-FFK-Azi nanofibers) formed at 3 h (Fig. 4b). After that, from 24 h to 4 d, we found that nanoparticles (i.e., generation of the cycloaddition product Nap-FFK-Tria-GFF-Nap) were continuously generated along the nanofibers. Finally, the nanoparticles connected with each other to form helical nanoribbons at day 7. This result also indicates that occurrence of the cycloaddition reaction in Nap-FFK-Azi + Nap-FFG-Alk group improve the stability of the intermediate nanoribbon structure of the two precursor peptides to the final nanoribbons. Above TEM observations directly validate our hypothesis that, along with the self-assembly of nanofiber, Nap-FFK-Azi or Nap-FFG-Alk is drawn near to the nanofiber with space-confined effect, undergoing cycloaddition reaction to yield regionally selective product Nap-FFK-Tria-GFF-Nap.

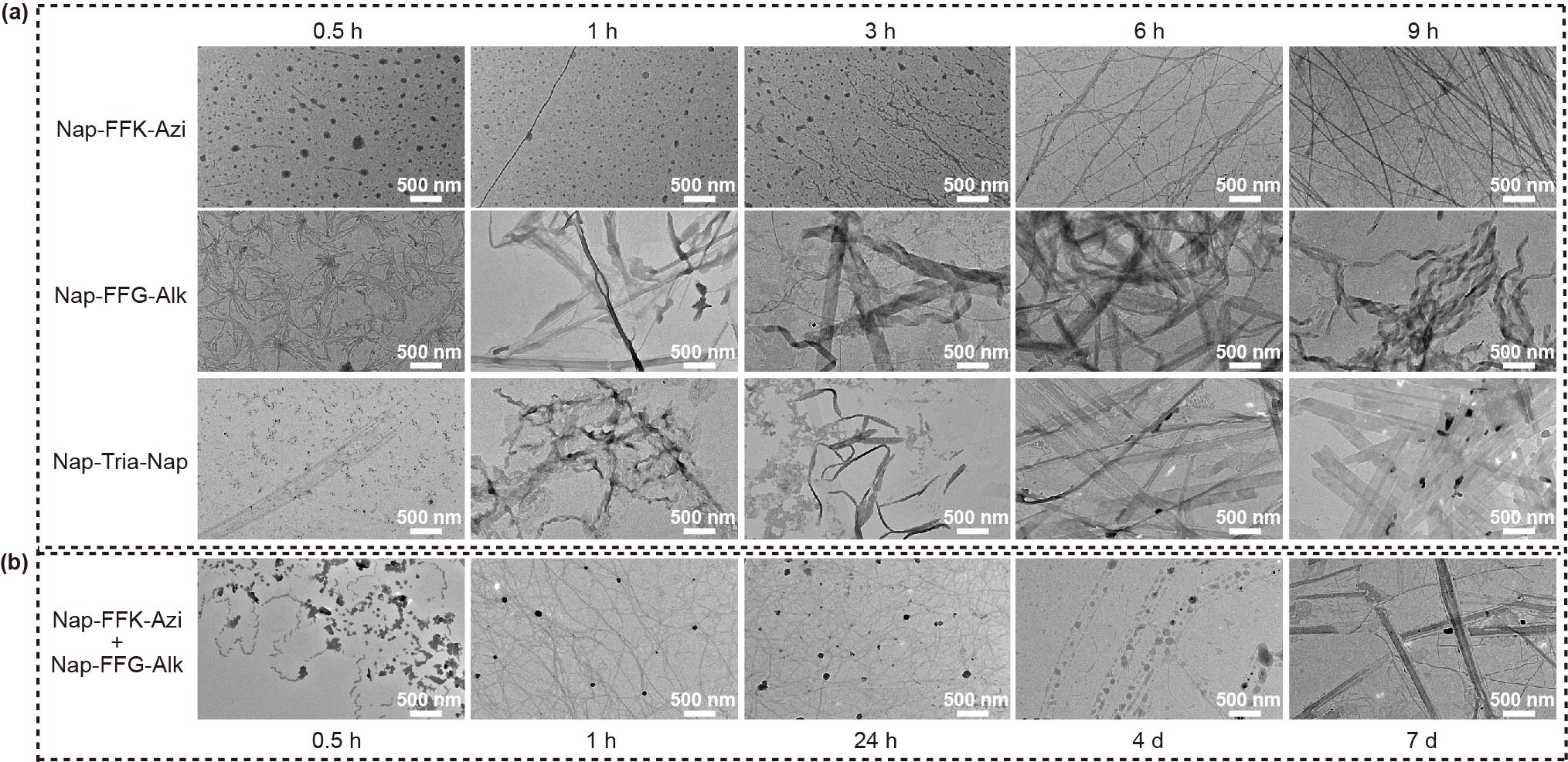

Fig. 4 Real time TEM observations of the assembly-driven regionally selective azide-alkyne cycloaddition reaction. a Real time TEM images of 2.5 mM Nap-FFK-Azi hydrogel, 2.5 mM Nap-FFG-Alk hydrogel, and 2.5 mM Nap-FFK-Tria-GFF-Nap solution aging at 4 °C. b Real time TEM images of 2.5 mM Nap-FFK-Azi + Nap-FFG-Alk hydrogel aging at 4 °C. Scale bar = 500 nm.

In summary, we rationally designed three compound and validated that assembly could drive metal-free azide-alkyne cycloaddition reaction with excellent regioselectivity. Previous studies have revealed that hydrophobic interactions and hydrogen-bonding could accelerate the Diers-Alder reaction. This work demonstrated another example of using assembly to realize metal-free azide-alkyne cycloaddition with excellent regioselectivity.  Currently, metal-free bioorthogonal click reactions show promising potential in a variety of biological applications including biomolecule labelling, prodrug activation, and cancer theranostics. Encouraged by this work, we are applying supramolecular self-assembly to realize more reactions without metal ion catalysis, and those works are on the way.
