Micropatterned microfluidics: dendronized fluorosurfactants for highly stable emulsions

We design surfactants that form robust microdroplets with improved high stability (in PCR thermal cycling) and resistance to inter-droplet transfer (of fluorescent dye salts, drugs, etc) using dendritic oligo-glycerol-based surfactants with a high degree of inter-and intramolecular hydrogen bonding.
Published in Bioengineering & Biotechnology
Go to the profile of Xingcai Zhang
Xingcai Zhang and Xingcai Zhang
2 contributors
Micropatterned microfluidics: dendronized fluorosurfactants for highly stable emulsions
Like

Share this post

Choose a social network to share with, or copy the URL to share elsewhere

Share with...

...or copy the link

This is a representation of how your post may appear on social media. The actual post will vary between social networks

Read the paper

Nature
Nature Nature

Dendronized fluorosurfactant for highly stable water-in-fluorinated oil emulsions with minimal inter-droplet transfer of small molecules - Nature Communications

Microdroplets are used as chemical and biological reactors; however, stability and inter-droplet transfer are major issues. Here, the authors report on the development of dendritic glycerol-based surfactants for the creation of stable microdroplets and demonstrate application for PCR, minimal emulsion, and cell encapsulation.

Fluorosurfactant-stabilized microfluidic droplets are widely used as pico- to nanoliter volume reactors in chemistry and biology. However, current surfactants cannot completely prevent the inter-droplet transfer of small organic molecules encapsulated or produced inside the droplets. In addition, the microdroplets typically coalesce at temperatures higher than 80 °C. Therefore, the use of droplet-based platforms for ultrahigh-throughput combination drug screening and polymerase chain reaction (PCR)-based rare mutation detection has been limited. Here, we provide insights into designing surfactants that form robust microdroplets with improved stability and resistance to inter-droplet transfer. We used a panel of dendritic oligo-glycerol-based surfactants to demonstrate that a high degree of inter-and intramolecular hydrogen bonding, as well as the dendritic architecture, contribute to high droplet stability in PCR thermal cycling and minimize the inter-droplet transfer of the water-soluble fluorescent dye sodium fluorescein salt and the drug doxycycline. (Dendronized fluorosurfactant for highly stable water-in-fluorinated oil emulsions with minimal inter-droplet transfer of small molecules. Nat Commun 10, 4546 (2019). https://doi.org/10.1038/s41467-019-12462-5)

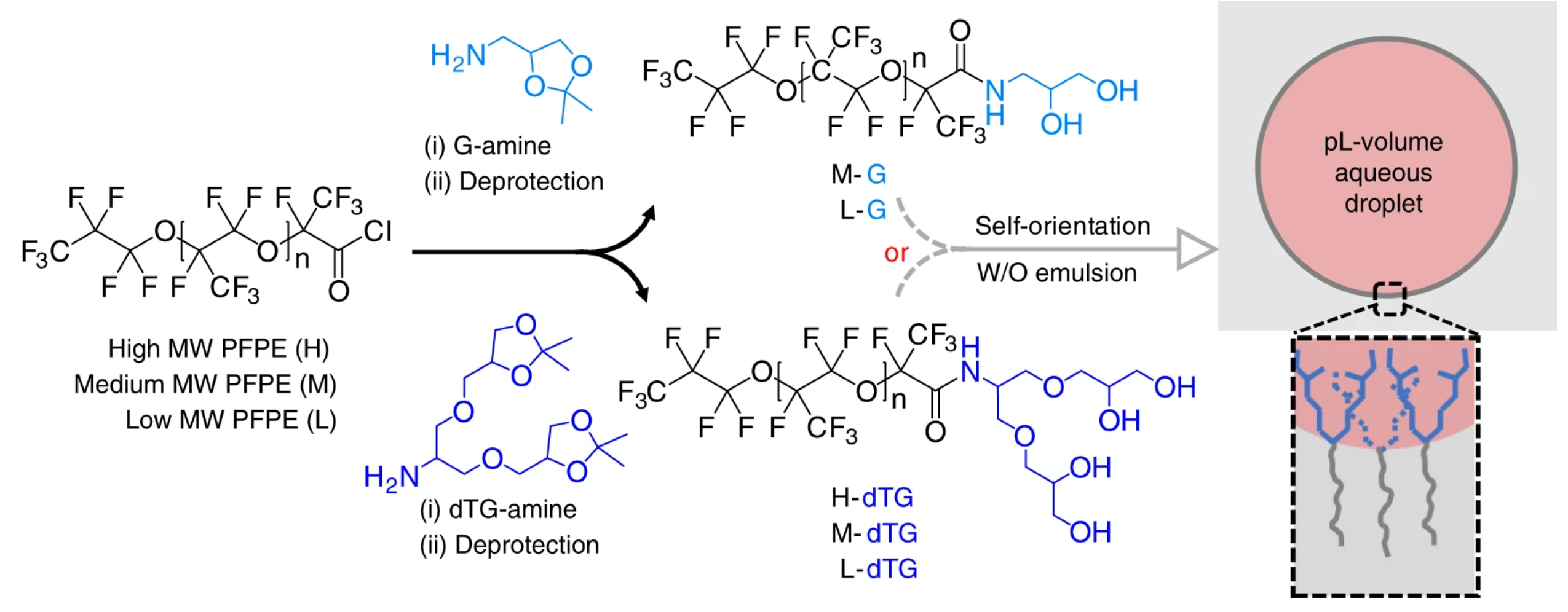

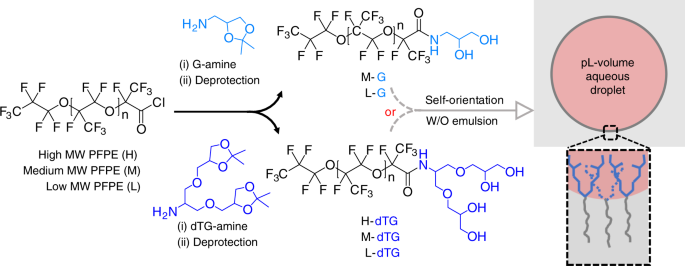

Fig 1 Synthesis of fluorosurfactants with dendritic glycerol head groups. PFPE tails of two different fluoro-chain lengths (M, L) were conjugated to the mono-glycerol (G) polar head (upper drawing, light blue) to create surfactants M-G and L-G; PFPE tails of three different molecular weights (H, M, L) were conjugated to dendritic tri-glycerol (dTG) polar head to create surfactants H-dTG, M-dTG, and L-dTG (lower drawing, blue). These surfactants orient at the interface (deep gray) of water (light red) and fluorinated oil (gray) to stabilize picolitre-volume (pL) water-in-oil (W/O) emulsion droplets, as depicted in the picture

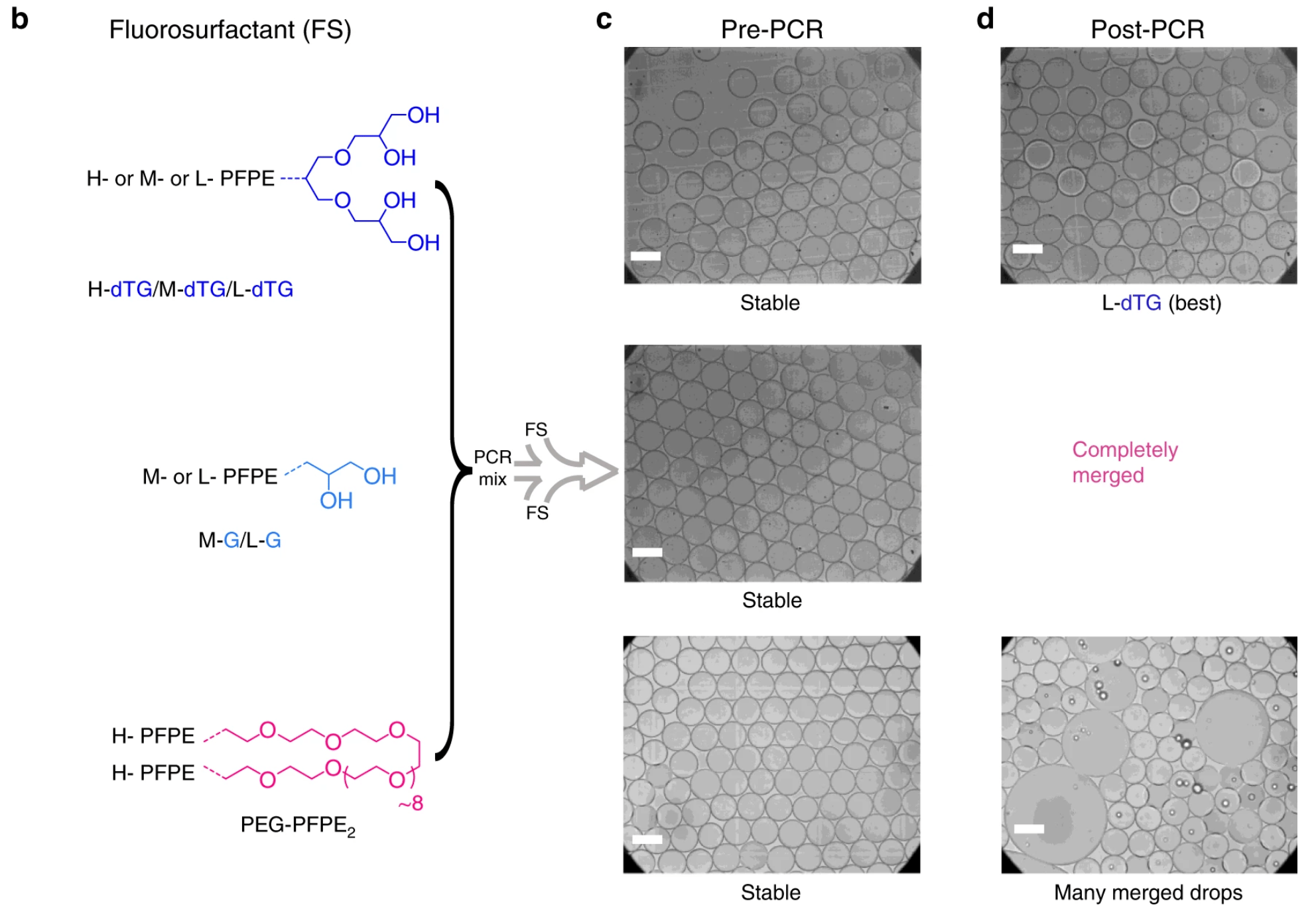

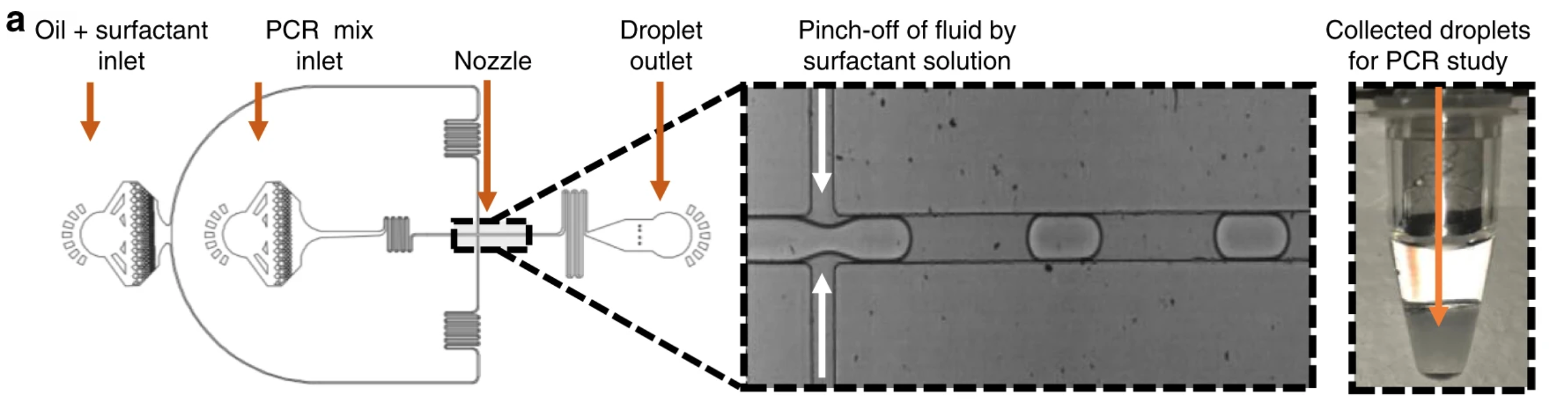

Fig 2 Polar head group geometry dictates droplet stability. a Polydimethylsiloxane (PDMS) based microfluidic devices are used to prepare microdroplets containing PCR reagents.

Fig 2 Polar head group geometry dictates droplet stability. b The three tri-glycerol (dTG)-based surfactants (H-dTG, M-dTG, L-dTG), the two mono-glycerol (G)-based surfactants (M-G, L-G), and the PEG600-based fluorosurfactant, PEG-PFPE2, were used to create droplets for stability testing (chemical structures in b). c Droplets produced using the tri-glycerol, the mono-glycerol, and the PEG600-based surfactants showed no merging during >24 h incubation at 4 °C (c showing pre-PCR droplets). d After 35 cycles of PCR, L-dTG-stabilized droplets showed almost no merging. In contrast, droplets generated using mono-glycerol (G)-based surfactants (M-G, L-G) merged completely during the PCR. Droplets stabilized with PEG-PFPE2 surfactant showed substantial merging (c depicting post-PCR droplets). Scale bar, 100 µm

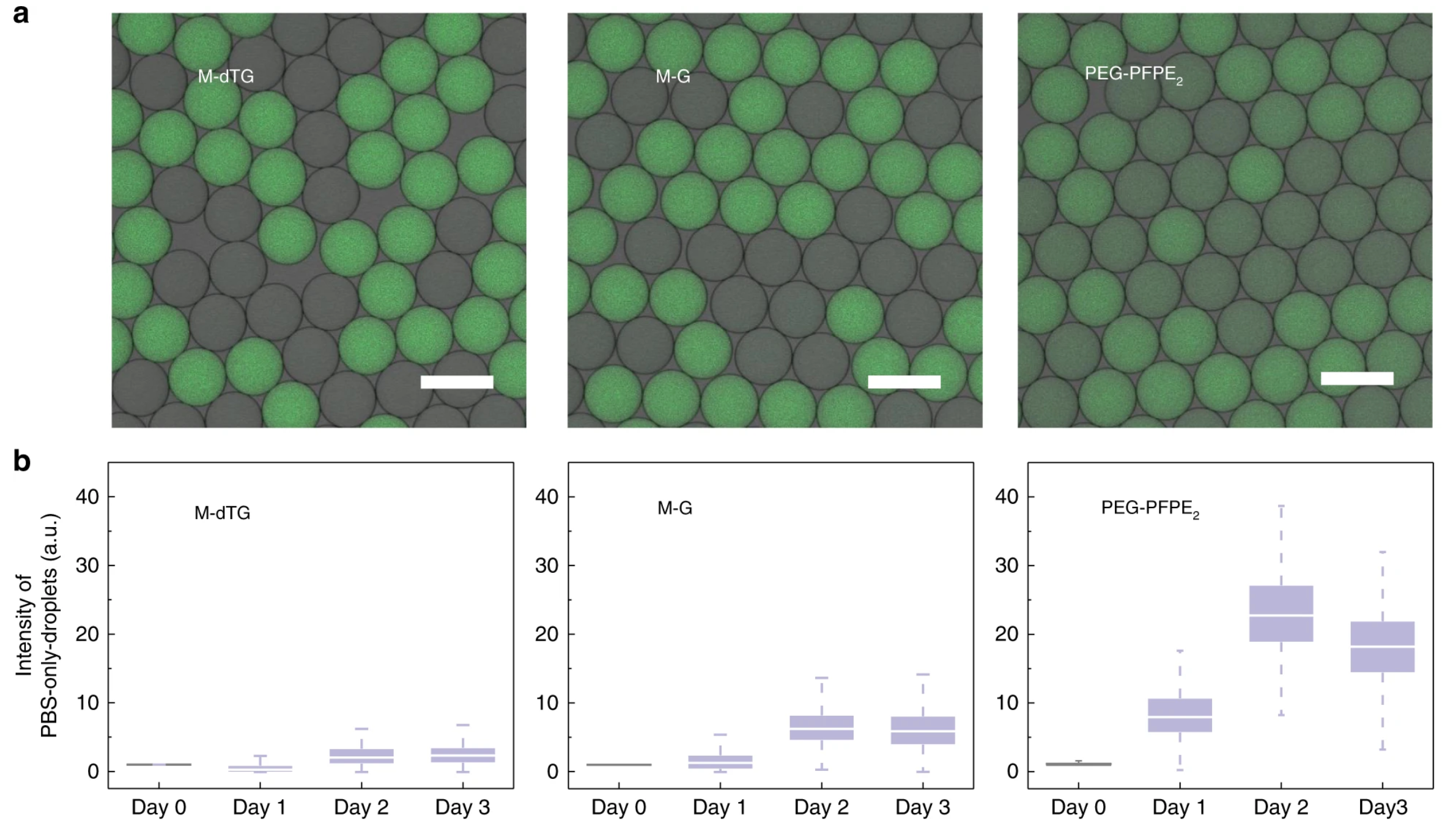

Fig 3 Influence of dense hydrogen bond network on inter-droplet diffusion. a For each surfactant, we used parallel drop maker to create a mixture comprising equal amounts of PBS-only-droplets and PBS + sodium fluorescein salt-containing droplets. Confocal fluorescent imaging of droplets after 72 h incubation at 37 °C is shown in top panel. b We incubated these mixtures, took fluorescence images at the indicated time points, and then performed quantitative analysis of the fluorescence intensity of the 10 randomly selected PBS-only droplets. Box-plot demonstrates that dye was almost completely retained in droplets stabilized by M-dTG, while some transfer was detected in M-G droplets. PEG-PFPE2 surfactant-stabilized droplets showed substantial transfer (left to right). The box plots represent the median (center line), the interquartile range (box) and the non-outlier range (whisker).

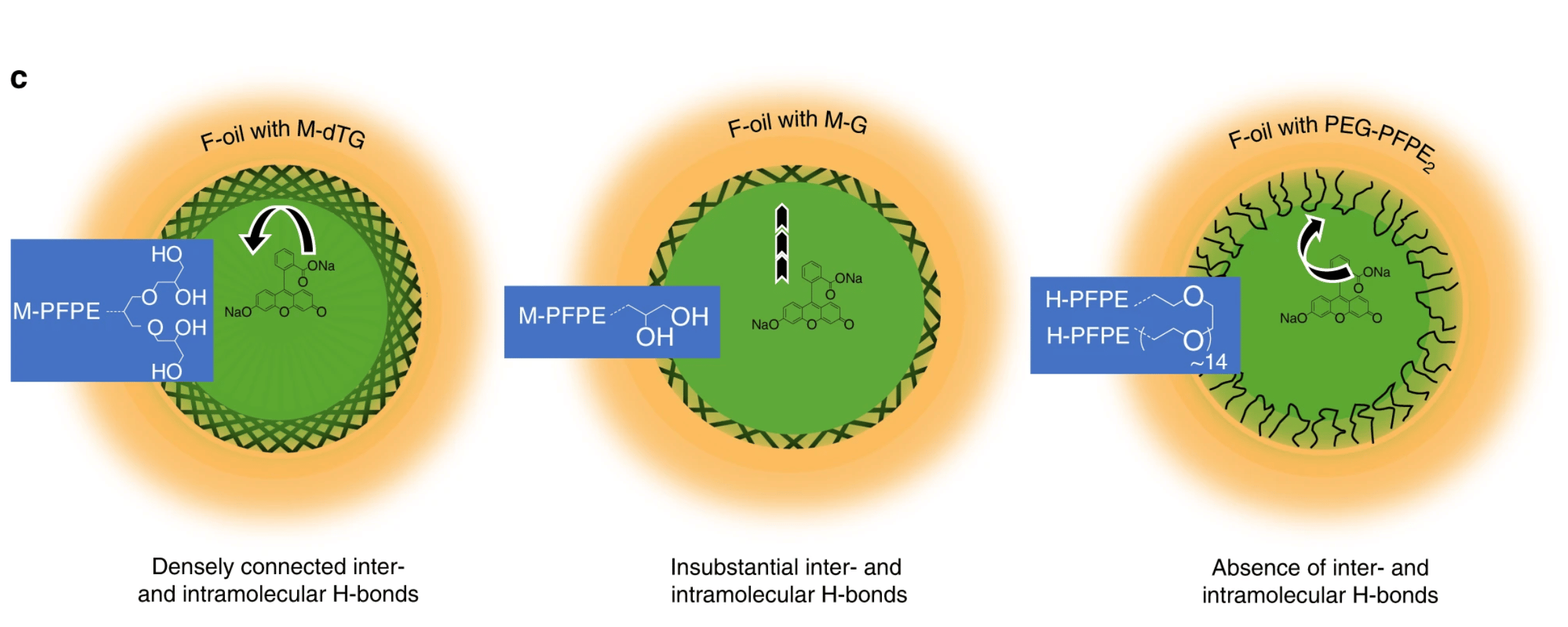

Fig 3 Influence of dense hydrogen bond network on inter-droplet diffusion. c A model representing the plausible inter- and intramolecular hydrogen bonding from M-dTG, M-G, and PEG-PFPE2 surfactants (left to right). The lines denote hydrogen bonding at the interface of oil and water. For PEG-PFPE2 surfactant, as there is no hydrogen bond donor, there is no inter- and intramolecular hydrogen bond present. Scale bars = 100 µm; a.u. = arbitrary units. Source data of Fig. 3b (middle panel) are provided as a Source Data file

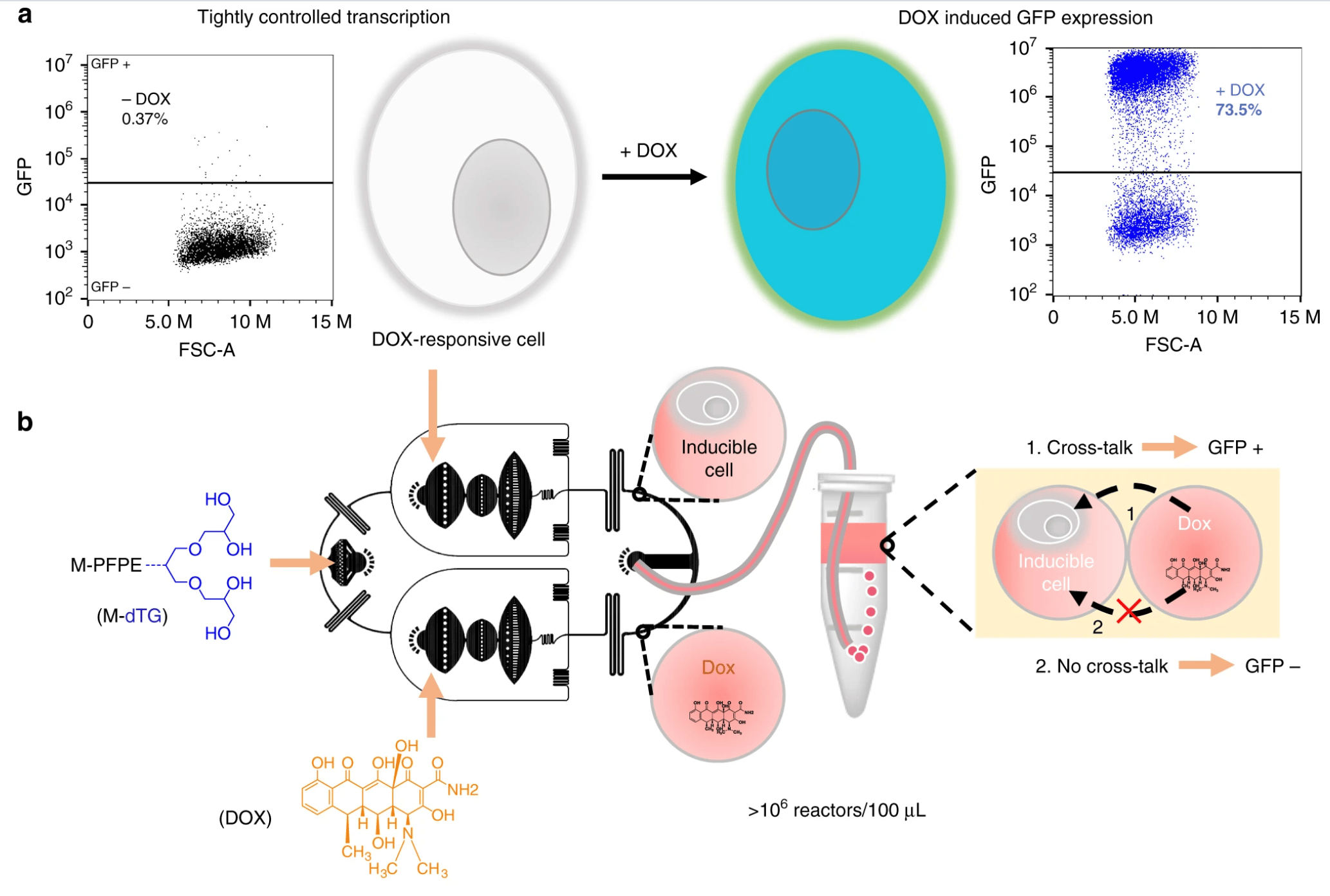

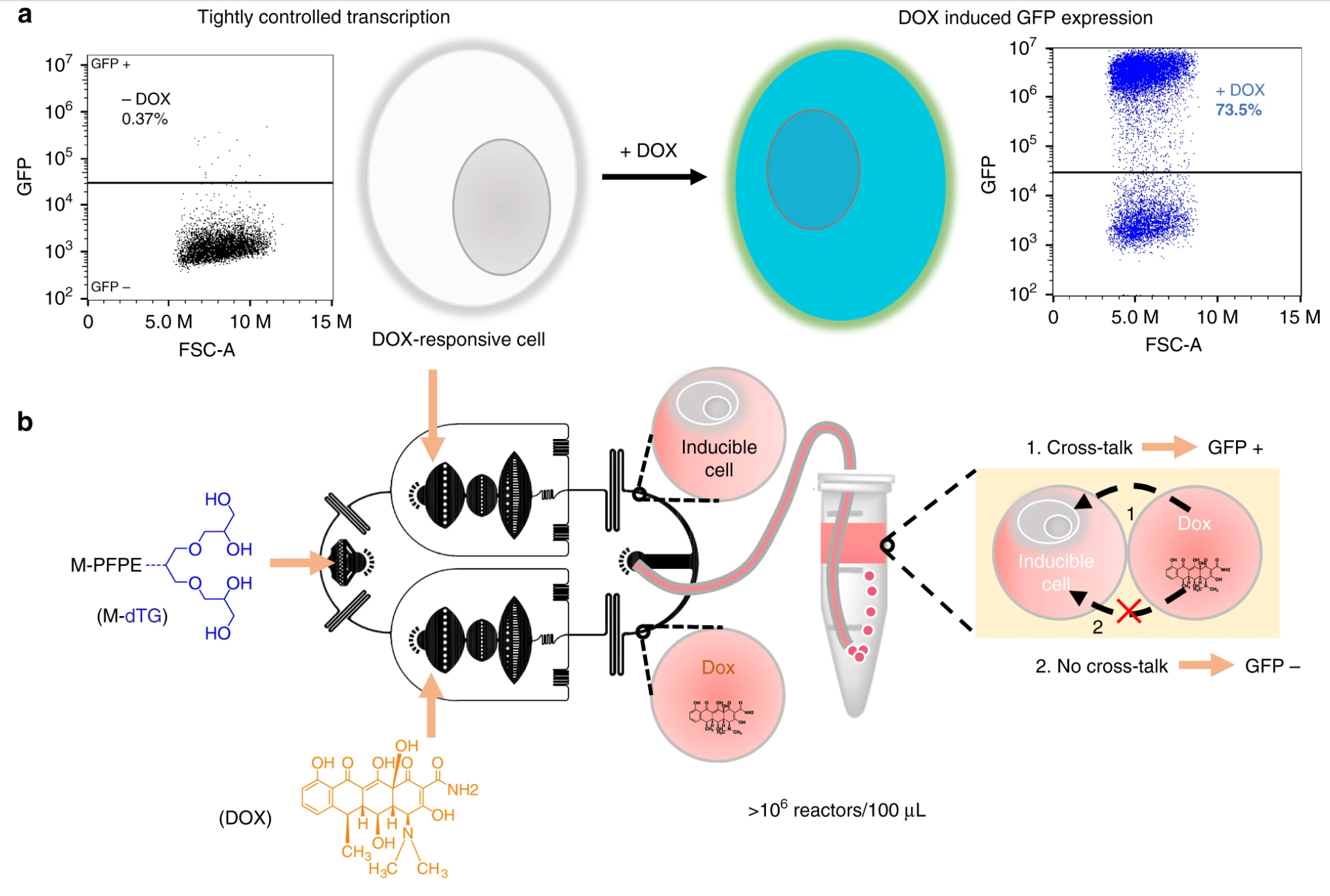

Fig 4 Cell-based reporter system to test inter-droplet drug diffusion. a HEK 293 cells stably transfected with a doxycycline responsive GFP reporter construct (reporter cells) show no GFP expression in the absence of drugs and become highly fluorescent after 48 h incubation in the presence of 500 nM DOX-solution. b Homogeneous population of DOX-containing droplets and Reporter-cell-containing droplets was generated using a parallel drop maker that creates an equal number of droplets from two independent aqueous streams.
Fig 4 Cell-based reporter system to test inter-droplet drug diffusion. c Cell-loading into droplets roughly follows Poisson predictions. We imaged 533 droplets immediately after cell encapsulation to determine cell occupancy. We used an input density of five cells per droplet volume and found that 83% of the droplets contained one or more cells. Therefore, with cells at this concentration, the parallel drop maker generates a mixed droplet population in which 42% droplets contain one or more cells, 50% contain only doxycycline, and 8% are empty. d Box-plot of droplet size distribution after 24, 48, and 72 h incubation at 37 °C demonstrates that the mean average droplet diameter remained constant (~75 µm) over the time course (n = 204–226 droplets for each time point). The box plots represent the median (center line), the interquartile range (box) and mean ± 1.5 x s.d. (whisker). e Viability of cells cultured in wells or in droplets. As a positive control we cultured cells at standard concentration in culture wells (CW–SC) (1 × 106 cells/ml). We used M-dTG and PEG-PFPE2 surfactants to generate cell encapsulated droplets and incubated droplets at 37 °C for the indicated times. We isolated cells from the droplets to perform live/dead assay using Calcein AM and Ethidium Homodimer-1 dyes based live/dead cell viability assay kit (Invitrogen). We counted ~500–2000 cells to estimate the cell survival rate at the indicated time points. Data are presented as mean ± s.d., n = 4 images from distinct areas. Source data of c–e are provided as a Source Data file

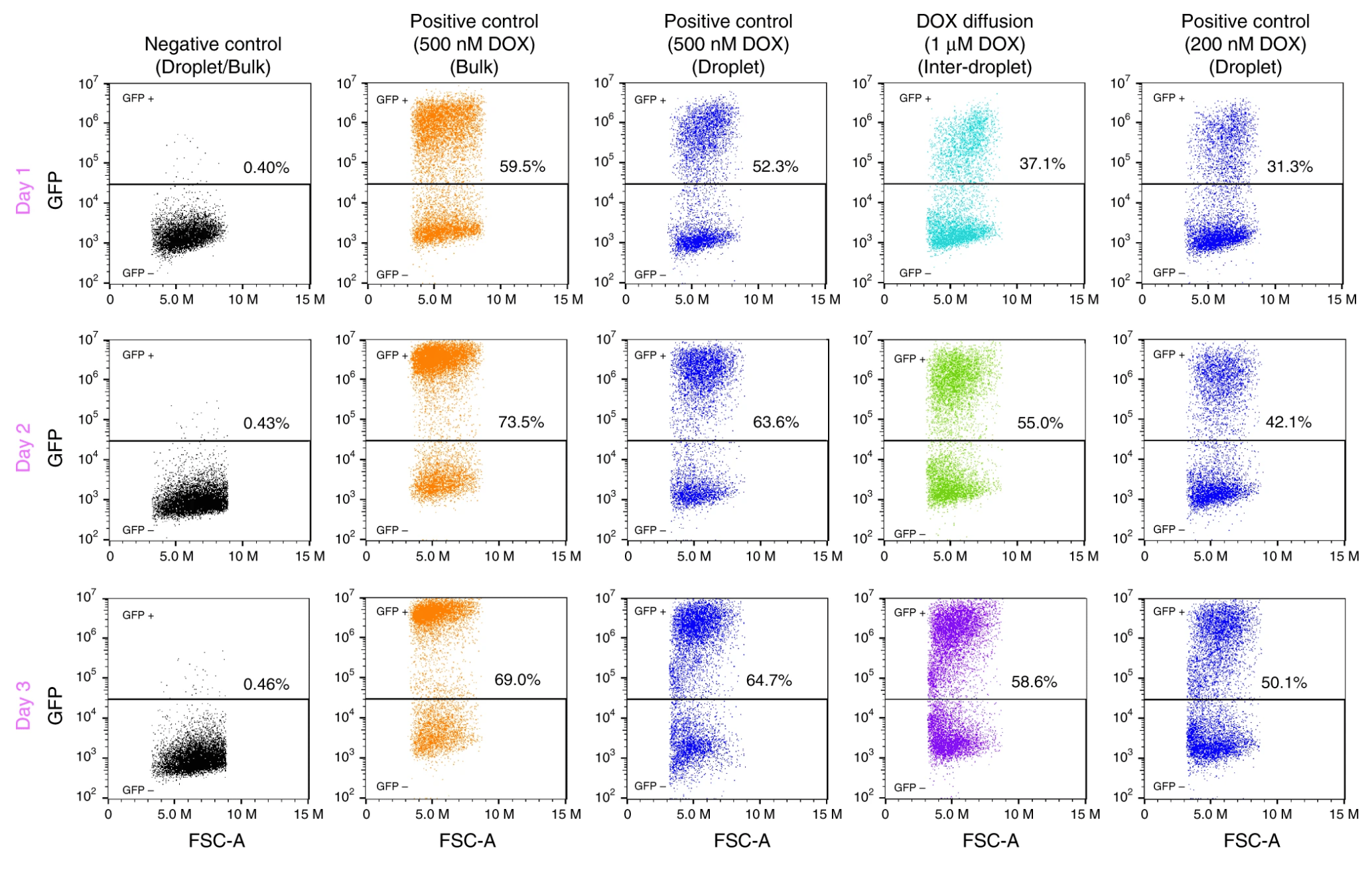

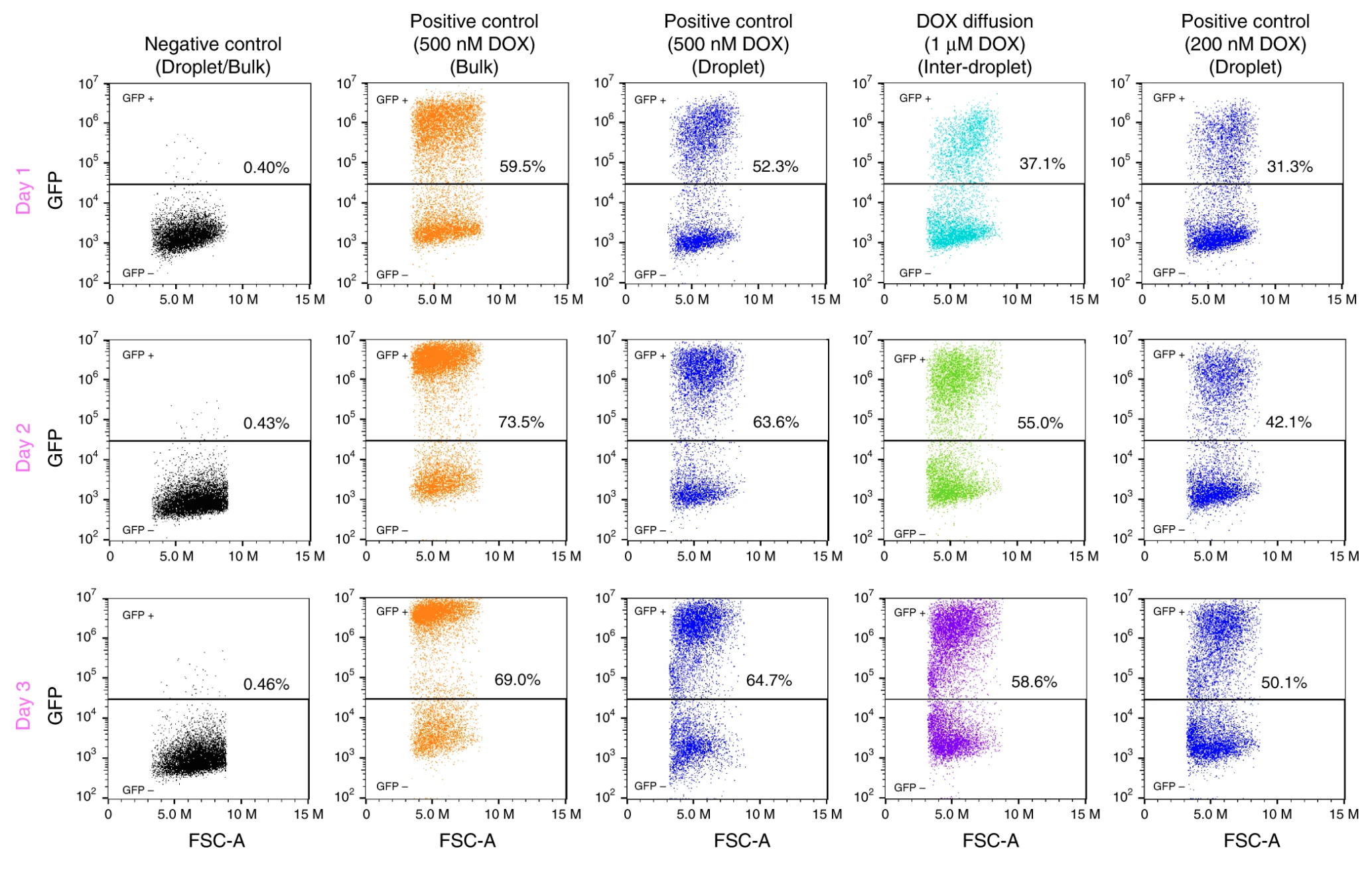

Fig 5 DOX-inducible GFP-reporter cells to quantify drug transfer. We used the parallel drop maker to generate homogenous mixtures in which 50% of the droplets contained DOX (at the indicated concentrations), 42% contained ≥1 cell, and 8% were empty. We incubated droplets at 37 °C for the indicated times, isolated the cells from the droplets, and quantified the GFP+ cells using flow cytometer. GFP intensity is plotted against forward scatter-area (FSC-A). For the positive control in bulk, we cultured the DOX-GFP-HEK 293 cells with DOX in six well plates using standard cell culture methods. For the Positive Control (Droplet), all droplets, including those with cells, contained DOX at the indicated concentration

Related micropatterned microfluidics studies:

1）https://www.nature.com/articles/s41578-020-00247-y

Imaging systems and microfluidic devices for the in-depth and real-time investigation of viral structures and transmission, material platforms for organoids and organs-on-a-chip, in drug delivery and vaccination, and the production of medical equipment.

  1. Z Tang†, N Kong†, X Zhang†, Y Liu, P Hu, S Mou, P Liljeström, J Shi, W Tan, J S Kim, Y Cao, R Langer, K W. Leong, O C. Farokhzad, W Tao. A materials-science perspective on tackling COVID-19. Nature Reviews Materials, 2020, 5, 847-860. (Featured Cover Paper, highly cited paper, accessed>30,000 times, Impact Factor:71.189)

 2）https://www.nature.com/articles/s41467-019-12462-5

Dendronized fluorosurfactant for highly stable water-in-fluorinated oil emulsions with minimal inter-droplet transfer of small molecules

  1. M Chowdhury, W Zheng, S Kumari, J Heyman, X Zhang, P Dey, D Weitz, R Haag. Dendronized fluorosurfactants provide phenomenal droplet integrity to picolitre emulsions for therapeutics development. Nature Communications, 2019, 10, 4546 (Impact Factor:14.919).

3) https://doi.org/10.1021/acsnano.0c02701

An osmotic-pressure, pH, excretion, nutrition, gas, ionic-strength, flow-rate, and temperature (OPEN GIFT) microenvironment-controlled micropatterned microfluidic model (MMMM) for biomimetic in situ studies (BISS) in simulating the in vivo microenvironment to study in situ the stress applied to Giardia in the intestinal tract.

  1. Y Wang, L Lu, G Zheng*, X Zhang*. Microenvironment-controlled micropatterned microfluidic model for biomimetic in-situ studies. ACS Nano, 2020, 14(8), 9861-9872. (Featured Cover Paper, Impact Factor:15.881).

4) https://doi.org/10.1016/j.bios.2019.111597

  1. S Han†, Q Zhang†, X Zhang†, X Liu, L Lu, J Wei, Y Li, Y Wang, G Zheng. A digital microfluidic diluter-based microalgal motion biosensor for marine pollution monitoring. Biosensors and Bioelectronics, 2019, 143, 111957 (Impact Factor:10.257).

5)  https://doi.org/10.2144/btn-2019-0134

  1. L Liu, N Xiang, Z Ni, X Huang, J Zheng, Y Wang, X Zhang*. Step Emulsification: High throughput production of monodisperse droplets. BioTechniques, 2020, 68 (3), 114-116. (Invited Expert Paper)

6) https://doi.org/10.1016/j.nantod.2021.101152

  1.  S Wang, Z Shen, Z Shen, Y Dong, Y Li, Y Cao, Y Zhang, S Guo, J Shuai, Y Yang, C Lin, M Guo, X Chen*, X Zhang*, Q Huang*. Machine-learning micropattern manufacturing. Nano Today, 2021, 38 (2021), 101152. (Impact Factor:20.722)

7) https://doi.org/10.1016/j.bioactmat.2021.04.014

  1. Z Li†, X Zhang† J Ouyang, D Chu, F Han, L Shi, R Liu, Z Guo, G Gu, W Tao, L Jin, J Li. Ca2+-supplying black phosphorus-based scaffolds developed with microfluidic technology for osteogenesis. Bioactive materials, 2021, 6(11), 4053-4064. (Impact Factor:14.593).

8) https://doi.org/10.1016/j.pmatsci.2020.100768

Microfluidic technology for Theranostics.

  1. J Yang†, X Zhang†, C Liu†, Z Wang, L Deng, C Feng, W Tao, X Xua, W Cui. Biologically Modified Nanoparticles as Theranostic Bionanomaterials. Progress in Materials Science, 2021, 118, 100768. (Impact Factor:39.58)

9) https://doi.org/10.1007/s40820-021-00663-x

  1. M Chowdhury†, X Zhang†, L Amini, A Faghani, A Singh, M Henneresse, R Haag. Functional Surfactants for Molecular Fishing, Capsule Creation, and Single-Cell Gene Expression.  Nano-Micro Letters, 2021, 13, 147. (Impact Factor:16.419)

 10) https://doi.org/10.1021/acs.analchem.1c00917

  1.  G Zheng, Q Gao, Y Jiang, L Lu, J Li，X Zhang, H Zhao, P Fan, Y Cui, F Gu, Y Wang.            Instrumentation-compact digital microfluidic (DMF) reaction interface extended  loop-mediated isothermal amplification (LAMP) for sample-to-answer testing of Vibrio parahaemolyticus. Analytical Chemistry, 2021, 93, 28, 9728–9736.

11) https://doi.org/10.1016/j.mattod.2021.10.008.

  1. Y Li*, B Liu*, X Zhang*. Wettability-patterned microchips for emerging biomedical materials and technologies. Materials Today 2021, 51, 273. https://doi.org/10.1016/j.mattod.2021.10.008.

12) DOIhttps://doi.org/10.1039/D1NR06195J

  1. L Liu, M Bi, Y Wang, J Liu, X Jiang, Z Xu, X Zhang*. Artificial intelligence-powered microfluidics for nanomedicine and materials synthesis. Nanoscale, 2021, 13, 19352-19366.  (Nanoscale Young Investigator Award Invited Paper)

13) https://doi.org/10.1007/s40820-021-00760-x

  1. C Kim, S Hong, D Shin, S An, X Zhang*, W Jhe*. Sorting gold and sand (silica) using atomic force microscope-based dielectrophoresis. Nano-Micro Letters, 2022, 14, 13.

14) https://doi.org/10.1021/acsnano.0c02701

  1. Nature Microbiology, 2021, NMICROBIOL-21092363 (under editorial consideration).

15)https://doi.org/10.1021/acsami.1c13469

F Huang, Y Weng, Y Lin, X Zhang, Y Wang, S Chen. Wetting-Enhanced Structural Color for Convenient and Reversible Encryption of Optical Information. ACS Applied Materials & Interfaces, 2021, 13 (35), 42276–42286.

16) https://doi.org/10.1021/acs.jafc.9b02028

  1. X Chen, Y Chen, L Zou, X Zhang, Y Dong, J Tang, D McClements, W Liu. Plant-based Nanoparticles Consisting of a Protein Core and Multilayer Phospholipid Shell: Fabrication, Stability, and Foamability. Journal of Agricultural and Food Chemistry, 2019, 67 (23), 6574-6584.

17) https://doi.org/10.1016/j.marpolbul.2019.04.063

   1. Zhang, Q., Zhang, X., Zhang, X., Jiang, L., Yin, J., Zhang, P., Han, S., Wang, Y.& Zheng, G. A feedback-        controlling digital microfluidic fluorimetric sensor device for simple and rapid detection of mercury (II) in costal seawater. Marine pollution bulletin, 2019, 144, 20-27.

18) https://doi.org/10.1166/jnn.2019.16752   19) https://doi.org/10.1109/ICSENS.2010.5690979.

  1. R Yang, Z Gong, X Zhang, L Que. Single-walled carbon nanotubes (SWCNTs) and poly(3,4- ethylenedioxythiophene) nanocomposite microwire-based electronic biosensor fabricated  by  microlithography and layer-by-layer nanoassembly. Journal of Nanoscience and Nanotechnology, 2019,19(12), 7591-7595. https://doi.org/10.1166/jnn.2019.16752

20) https://www.nature.com/articles/s41467-019-12462-5

B Wang, M Zhou, Y Han, M Zhang, Z Liu, X Cai, P Chen, W Du, Y Li, X Zhang*, X Feng*, B Liu *. Microfluidic-detection artificial-intelligence-analysis point-of-care mobile health platforms. Nature Communications, 2022, NCOMMS-22-11149, pre-accept.
